7 ' Skid Steer Loader Backhoe with Curved Boom, 12" Bucket, Hydraulic Grapple Thumb included, for 30-60 HP , BHS700

+ Show More

SKU: 102205A | Model: BHS700

7 ' Skid Steer Loader Backhoe with Curved Boom, 12" Bucket, Hydraulic Grapple Thumb included, for 30-60 HP , BHS700

Name: 7 ' Skid Steer Loader Backhoe with Curved Boom, 12" Bucket, Hydraulic Grapple Thumb included, for 30-60 HP , BHS700
Brand: Farmry
SKU: 102205A
Price: 4999.0 USD
Availability: InStock

$4,999.00

$6,199.00

Save $1,200

FREE SHIPPING

EST. 11-14 Business Days Delivery

Learn More

Digging depth: 7'

7' 8'4" 9'4"

Availability: In Stock

Payment:

Leaves Warehouse Within 1 Week

Ships Randomly From our California or North Carolina Warehouse. Learn More

12-Month warranty included

4.6★ Verified Customer Reviews

U.S.Based Support

Product Overview

Designed for 30-60HP skid-steers with a compact structure, this backhoe has a maximum digging depth of 7′10″, and additional bucket sizes are available.

Its curved boom protects the backhoe from unnecessary damage while preventing the ground from falling back into the hole. Dual cylinders deliver strong, consistent movement across the entire 180-degree range.

Maintenance is easy, as all pivot points come with greasable pins; plus, hardened steel bushings are installed on all main pivot points to reduce wear.

Easy-to-use hydraulic stabilizers help prevent tipping, and the bucket teeth are replaceable—swap out worn or damaged ones to get back to work quickly.

A universal quick attach plate enables easy connection to most skid-steers.

When the boom swings to its extreme ends, rubber pads cushion it for a controlled stop, and rubber footpads on the stabilizers keep their teeth from tearing up your driveway.

Product Manual

BH(S) Series Backhoe Product Manual 1.0

Parts Manual

BHS Backhoe Parts List

Product Features

Powerful Design

Farmry backhoe attachments are precision-engineered for optimal size-weight-power balance—light for easy on-site handling, setup, and repositioning, yet strong for trench digging and heavy debris moving. Contrary to the "heavier = more durable" myth, excess weight strains tractor frames, accelerating wear.
Farmry boosts performance with CNC laser-cut components (precise fit), precision welding (uniform strong bonds, no weak points), and optimized structural design (even load distribution). This premium build delivers ideal weight-rigidity balance, protecting tractors while maintaining toughness for long-term reliability.

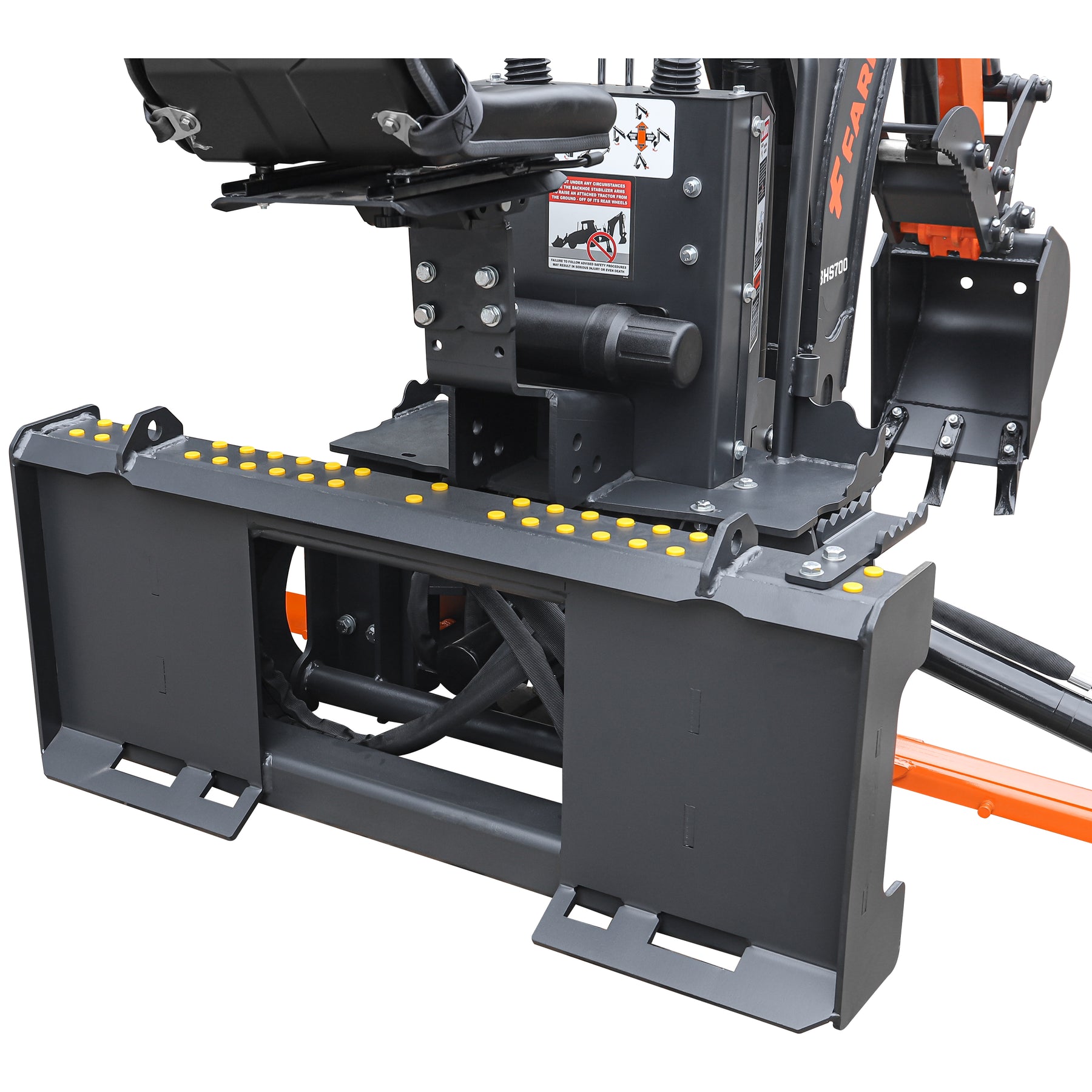

Skidsteer Mount

The universal quick attach plate connects easily to most skidsteers. This is more compatible and make your work more efficiency.

Curved Boom

A curved boom backhoe features an excavator-style curved boom that offers improved digging efficiency, greater clearance over obstacles, and better visibility of the trench and bucket compared to traditional straight booms. This design allows for deeper digging without damaging the excavation's edge and provides more clearance when loading trucks

Dual Swing Cylinders

The dual cylinders deliver strong, consistent movement across the full 180-degree range, letting you dig into even tight spots and dump dirt exactly where you need it

Hardened Steel Bushings

Backhoe pivot points (pins and pin bosses) wear under high loads, causing loose, rattling boom/dipper/bucket—a common issue for backhoes/excavators. Replacing only worn pins won’t restore performance—pin bosses wear too.
Farmry solves this with replaceable bushings pressed into pin bosses: swapping pins and bushings returns the backhoe to original condition, protecting your investment (no permanent boom slop without this feature). Ordinarily exclusive to standalone units, this feature is standard on all Farmry backhoe attachments.

Replaceable Teeth

Our bucket teeth allow you to swap out worn or damaged teeth and get back to work as soon as possible.
PICTURE FOR REFERENCE ONLY

Swing Cushioning

When swinging the boom to the extreme ends, rubber pads cushioning gracefully brings the boom to a controlled stop. Thus, it can provide the maximum protection during the equipment's left-to-right operation.

Rubber Footpads

Keep the stabilizer teeth from tearing up your lawn, blacktop, and concrete.

Grapple Thumb (Mechanical）

The grapple thumb is highly versatile for handling rocks, tree limbs, and brush. The mechanical type demands manual positioning: the operator lowers the thumb and inserts a pin to lock it in place.

JIC Style Hose Fittings

JIC (Joint Industrial Council) style hose fittings boast a 5000 psi pressure rating. When hydraulic hose replacement is needed, these fittings are typically easy to source—plus, they eliminate the hassle of dealing with mismatched joint threads.

Quick Hydraulic Controls

Equipped with flow control valve, this can easily control the cylinder speed which bring a quick hydraulic control respond
PICTURE FOR REFERENCE ONLY

specifications

Which One is Right for You?

Shipping Information

Warranty Information

Video

Reviews & Questions

FAQs

How to check if the PTO extender needed or not if purchasing tractor powerer backhoe?

For the backhoe models compatible with certain tractor versions (BH600, BH600 PRO, BH700, BH700 PRO, BH820, BH820 PRO, BH920, and BH920 PRO), interference may occur during installation between the PTO pump and the tractor, preventing full engagement with the tractor’s PTO shaft (see left figure below).
When purchasing the above models, please pay close attention to the following:

1. Ensure there is sufficient clearance around your tractor’s PTO shaft (as shown in the right figure below, with a dimension of 7-3/4").

2. Please refer to the following dimensional specifications of the PTO pump to verify compatibility with the PTO shaft area on the rear of your tractor.

3. The PTO pump cannot be installed if any components are located within the shaded area of the pulley pump (dimensions: 160×224 mm / 6.3×8.8 inches) when mounting to the tractor’s PTO shaft area.
If insufficient clearance exists due to the above conditions, a PTO driveline extender will be required.(see above right picture)
This can be purchased on the Farmry website or at most agricultural equipment dealers.

Max Digging Depth	7'
Digging depth (2 ft. flat bottom)	6′10″
Overall Operating Height（Fully Raised）	103″
Reach from Swing POST	118″
Loading Height（bucket at 60°rotation）	62″
Transport Height（with boom fully retracted）	71″
Transport Overhang	48″
Ground Clearance	10.5″
Stabilizer Width	93″
Stabilizer Width（Transport）	65″
Engine HP Range（Skidsteer）	30-60 HP
Required Hydraulic Flow	5-7 GPM
Main Boom Cylinder Diameter	2.8"
Dipper Cylinder Diameter	2.8"
Bucket Cylinder Diameter	2.4"
Thumb Cylinder Diameter	2.0"
Number of Swing Cylinder	2
Swing Cylinder Diameter	2.4"
Stabilizer Cylinder Diameter	2.0"
Flow Divider	included
Bucket Rotation	180°
Swing Arc	180°
Dipper Boom Digging Force	2050 lbs
Bucket Digging Force	3180 lbs
Weight W/bucket	1190 lbs
Operating Pressure	2320 psi
Mounting System	Skidsteer Mount

POWER TYPE	FAMILY	PRODUCT	MIN HORSE POWER	CATEGORY	MIN TRACTOR / SKID STEER WEIGHT	MIN WHEEL BASE
PTO	600 SERIES	BH600	18	1	1800 lbs	57"
	700 SERIES	BH700	25	1 or 2	2400 lbs	60"
		BH700.PRO
		BH700.E
	820 SERIES	BH820	30		3000 lbs	70"
		BH820.PRO
		BH820.E
	920 SERIES	BH920.PRO	45	2	4000 lbs	77"
Skid Steer	700 SERIES	BHS700.PRO	30	Skidsteer Mount	2600 lbs	NA
Skid Steer	820 SERIES	BHS820.PRO
