24 in Hydraulic Stump Grinder with 56pcs Carbide Teeth for Tractor From 25hp To 60hp, Premium Driveline with Included, HSG24

+ Show More

SKU: 107201A | Model: HSG24

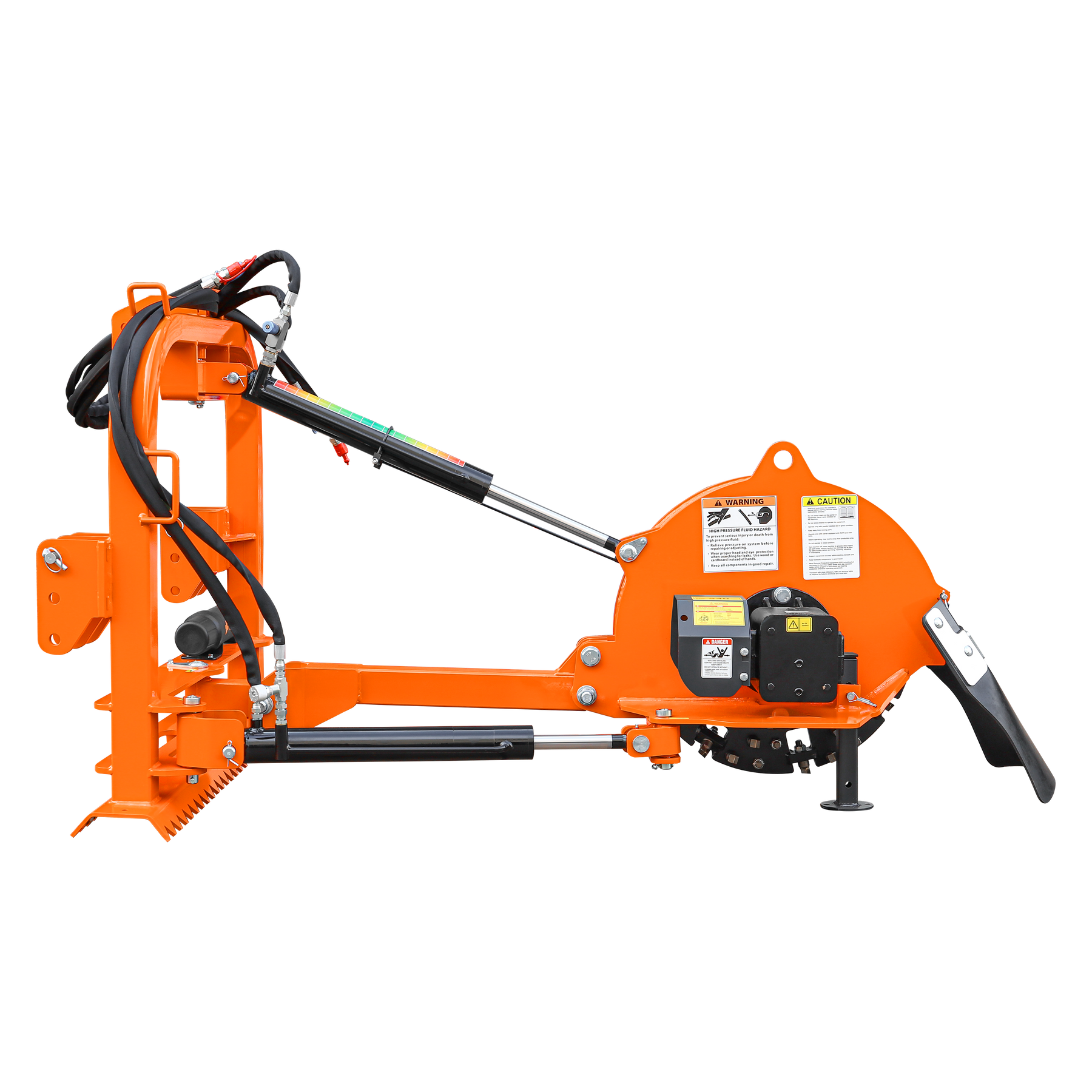

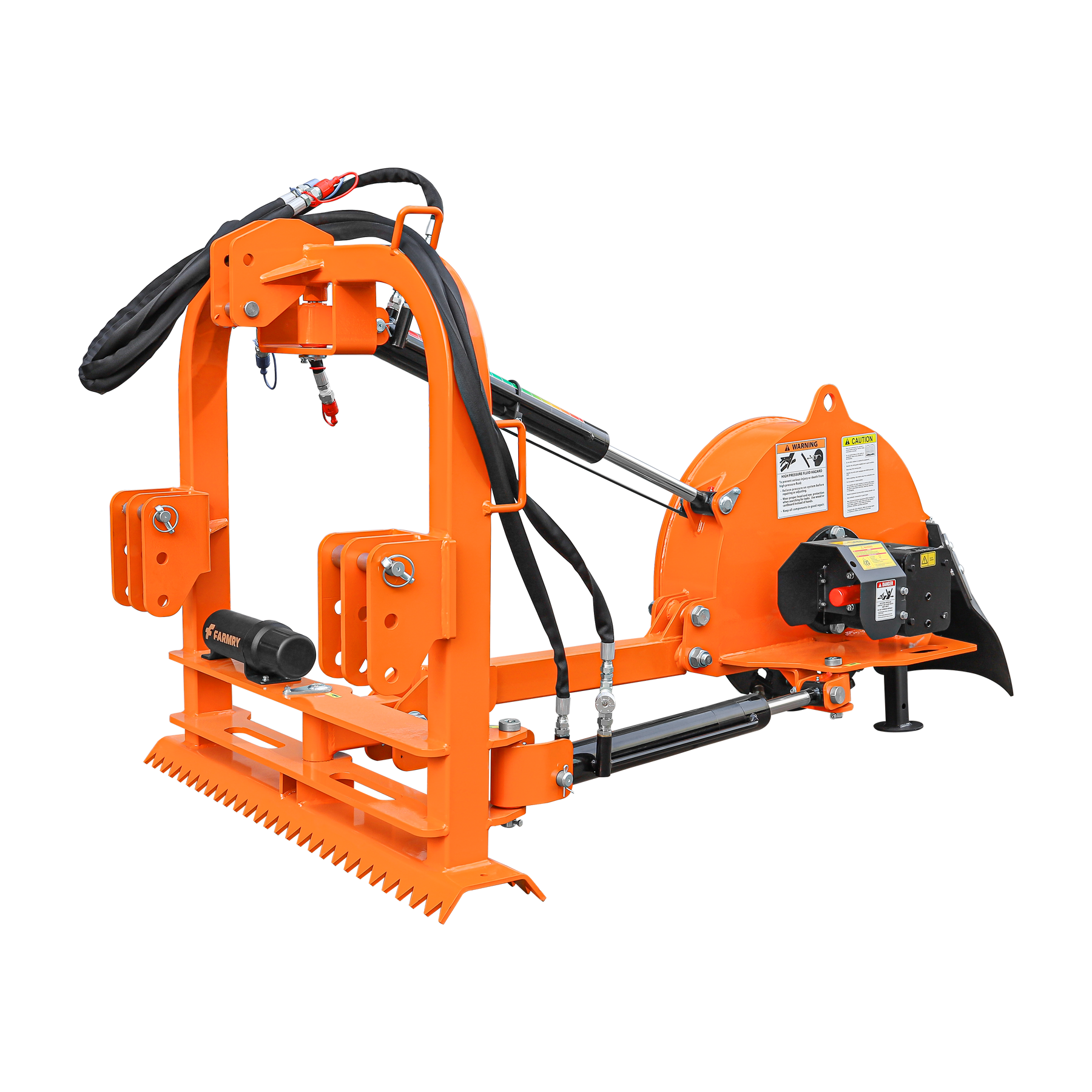

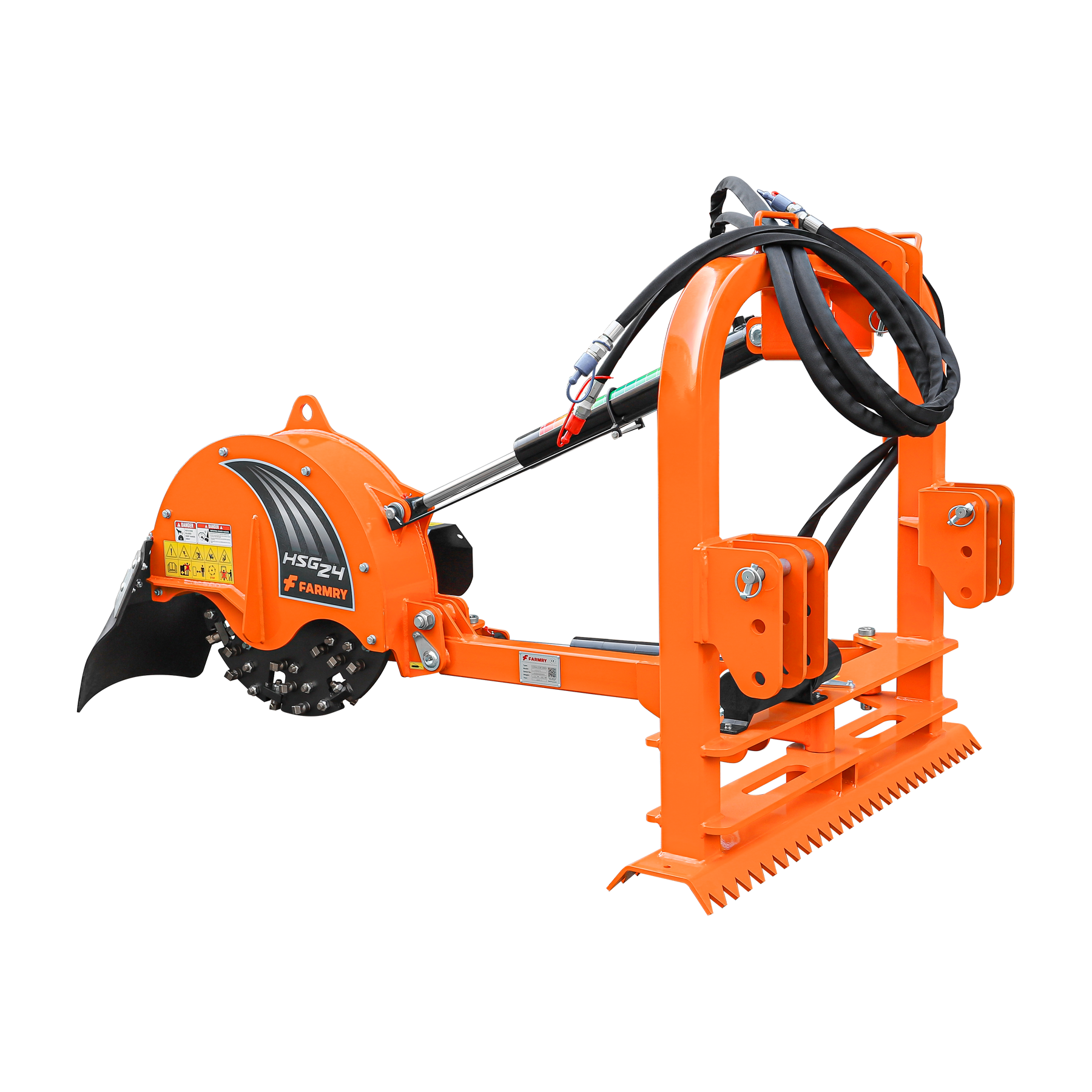

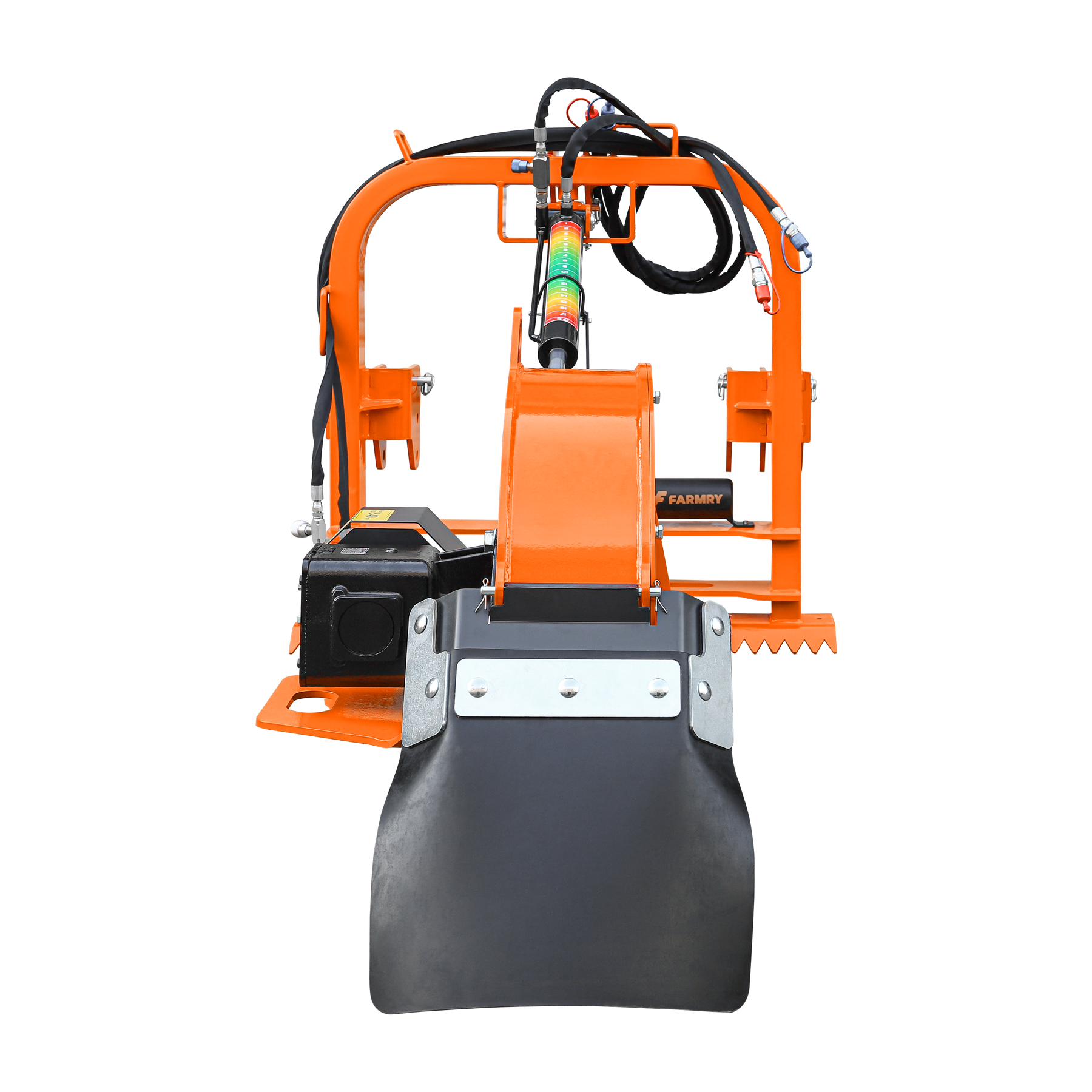

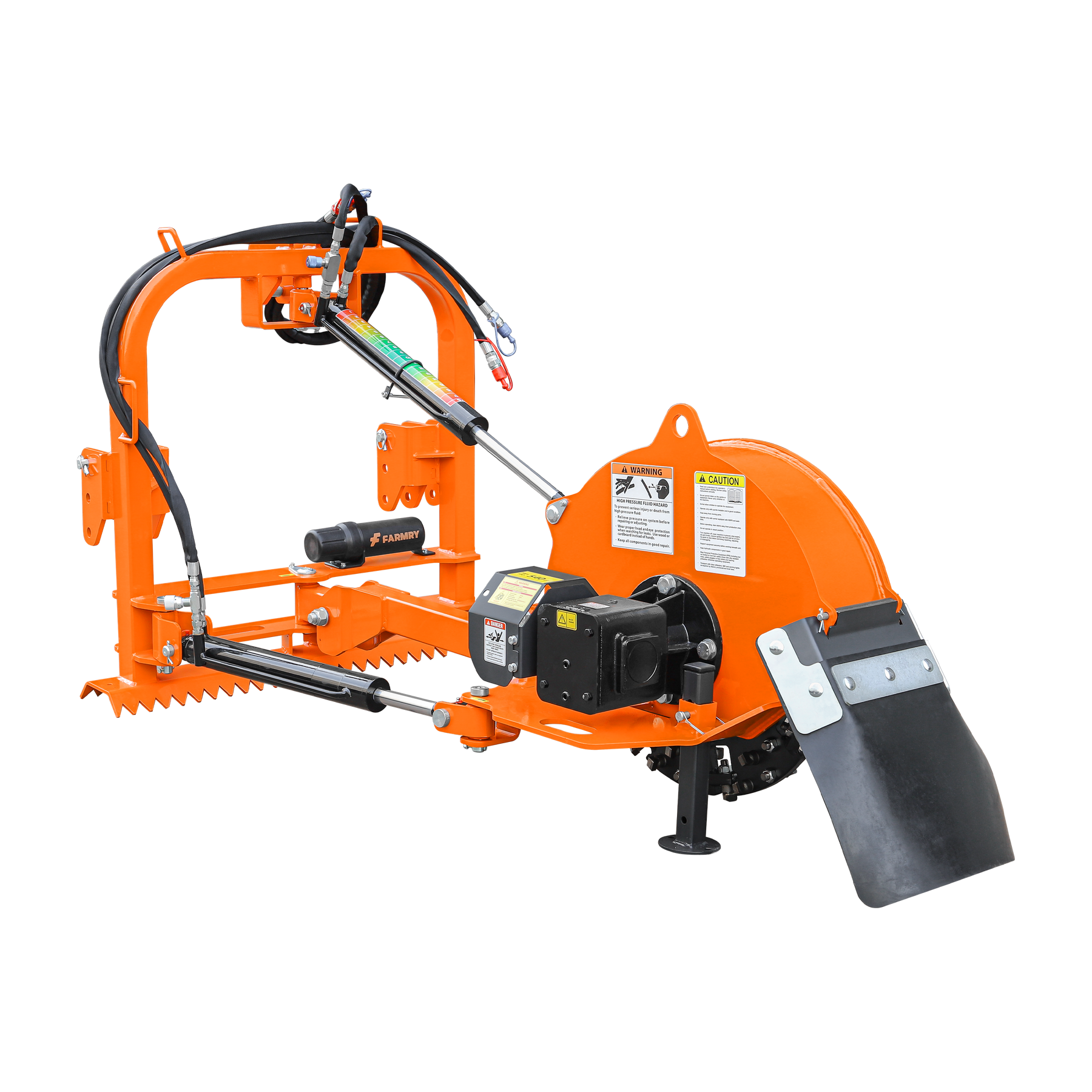

24 in Hydraulic Stump Grinder with 56pcs Carbide Teeth for Tractor From 25hp To 60hp, Premium Driveline with Included, HSG24

Name: 24 in Hydraulic Stump Grinder with 56pcs Carbide Teeth for Tractor From 25hp To 60hp, Premium Driveline with Included, HSG24
Brand: Farmry
SKU: 107201A
Price: 3199.0 USD
Availability: InStock

$3,199.00

$3,999.00

Save $800

FREE SHIPPING

EST. 11-14 Business Days Delivery

Learn More

Model: HSG24

HSG24 HSG24PRO BUNDLE SAVE! CP85+HSG24PRO BUNDLE SAVE! CP85+HSG24

Availability: In Stock

🎁 Free Gift

(1 Pack/8 Pcs of teeth)Teeth and Nut for SG24/SG24pro/SSG24/HSG24/HSG24PRO

$99.99 Free

Payment:

Leaves Warehouse Within 1 Week

Ships From Our U.S. Warehouses (California or North Carolina) Learn More

12-Month warranty included

Product Overview

The HSG24 PTO-Driven Hydraulic Control Stump Grinder is a professional equipment specially designed for efficient handling of various stumps. With core design focused on comfortable, safe operation and high adaptability, it is equipped with a full hydraulic control system, compatible with CAT.1/II category hitches, and also fits the QUICK HITCH of ASABE AD11001. It delivers excellent performance on farms, woodlands and other sites requiring stump removal, capable of handling stumps of different hardness and sizes, effectively eliminating obstacles to land use caused by residual stumps and facilitating subsequent land development and utilization.

The machine is equipped with a hydraulic flow control valve, allowing free adjustment of cylinder movement speed according to the host machine condition and different users' operating habits; its operation logic aligns with user habits, enabling cutting depth adjustment simply via the hydraulic control lever in the tractor cab. For tractors with only one set of hydraulic output interfaces, the HSG24 PRO is an option—it comes with a control valve to ensure compatibility with this type of host machine.

Product Manual

HSG24 Series product manual v1.0

Product Features

Flexible Hydraulic Control

Equipped with two hydraulic cylinders to position the milling head (up/down and left/right). Operators can easily control it from the tractor cab—this convenient operation not only improves work efficiency but also reduces labor intensity, allowing operators to focus more on stump grinding.

Durable Tooth Design

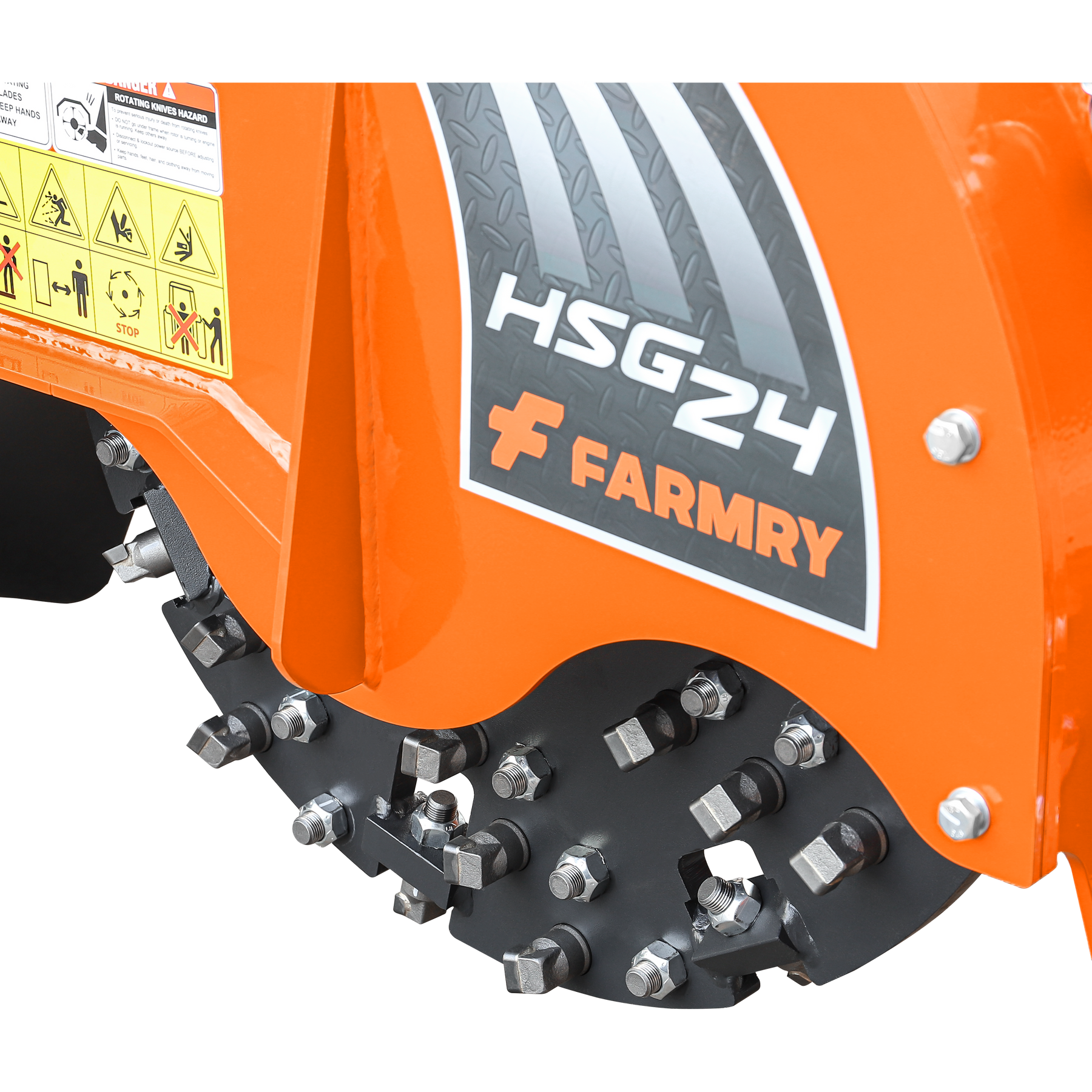

The 24-inch milling wheel is fitted with 56 cemented carbide teeth made of YG10C material, which stay sharp under heavy working conditions. Each tooth can be installed on both sides and supports swing grinding back and forth, greatly improving work efficiency and ensuring fast, effective handling of various stumps.

Excellent Cutting Depth

Features an above-ground cutting depth of 18 inches and an underground cutting depth of 12 inches. This strong cutting capability enables it to grind hard roots and stumps of different sizes, completely removing stumps and their root systems to prevent tree regrowth.

Stable Operating Performance

Adopts a bite-type, stable support foot design. It ensures the platform’s safety and stability during grinding, effectively reducing tractor vibration and wear, providing guarantee for the equipment’s long-term stable operation, and improving operator safety.

Efficient Power Transmission

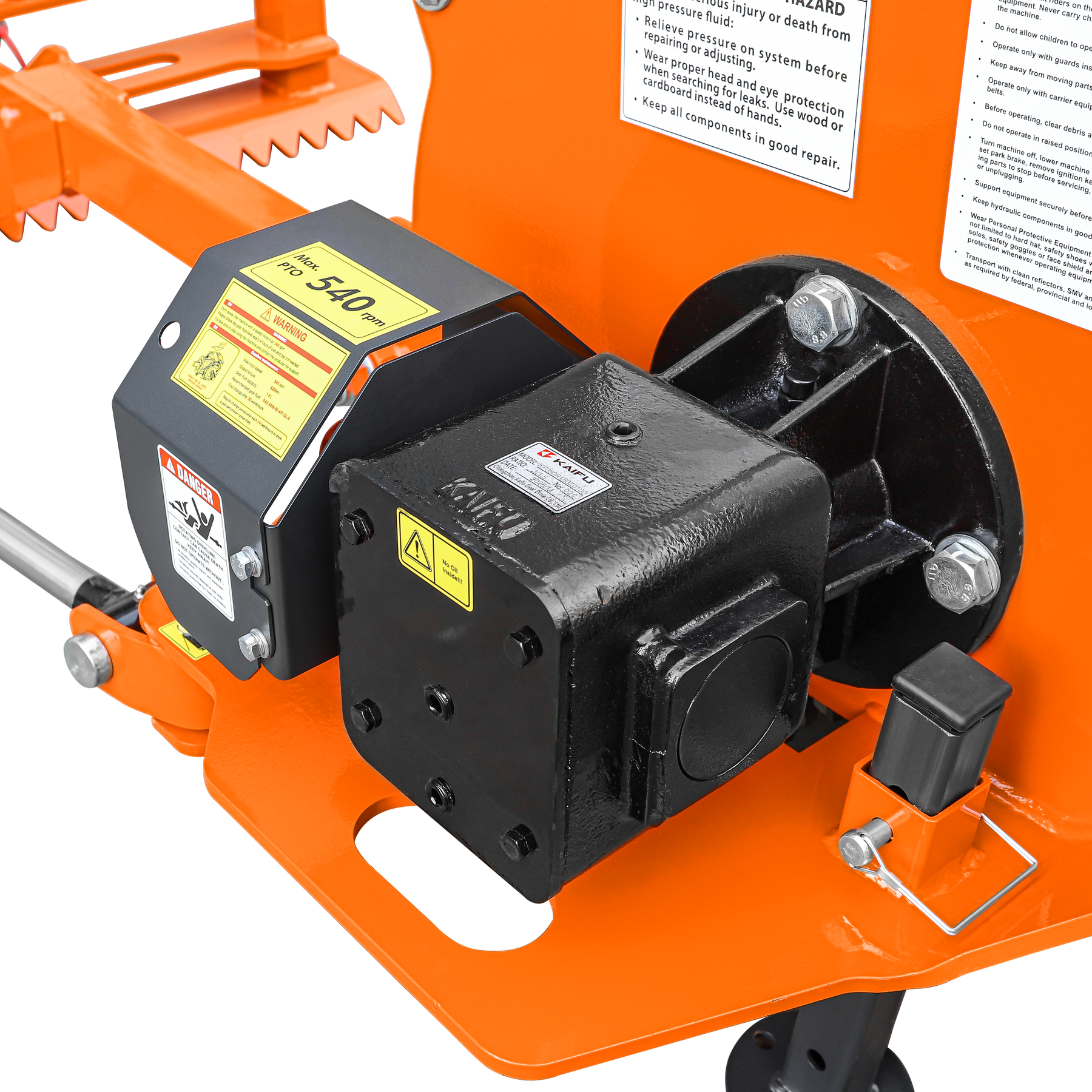

Uses the included telescopic drive shaft to drive the PTO (Power Take-Off). The heavy-duty gearbox transmits PTO power to provide high speed and torque, realizing cost-effective power transmission between the tractor and the grinder. This design not only ensures stable power supply but also adapts to different working environments and tractor models.

specifications

Which One is Right for You?

Feature	WCAP5	CP85
Product Positioning	Core Model	Recommended Performance Model
Cutting Performance	Standard	Faster Cutting with Speed-Increasing Gearbox
Feeding Speed	Standard	Faster
Maintenance Access	Standard	Tool-Free Hinged Design
Hitch Compatibility	CAT I / Class I Quick Hitch	CAT 1N / CAT 1 / CAT 2 + Class I Quick Hitch
Discharge Direction	0° / 180° Adjustable	0° / 180° Adjustable
Work Efficiency	Standard	Higher Throughput
Best For	Routine Property Maintenance	Frequent Use & Larger Jobs

Shipping Information

Warranty Information

Video

Reviews & Questions

FAQs

1. What are the key features of the HSG24 24 inch hydraulic stump grinder?

The HSG24 24 inch hydraulic stump grinder is designed for tractor owners who need stable and efficient stump removal.
As a heavy duty PTO stump grinder, it combines PTO power with hydraulic control to deliver smooth grinding performance across different working conditions.

2. Is this a PTO driven stump grinder with a PTO shaft connection?

Yes. The HSG24 is a PTO driven stump grinder that connects to the tractor through a standard PTO shaft.
Power is transferred through a rugged gearbox to drive the cutting wheel, ensuring stable and reliable operation during stump grinding.

3. Does the HSG24 support 3 point PTO and 3 point hitch mounting?

The HSG24 stump grinder is mounted using a 3 point hitch system and supports 3 point PTO operation.
It is compatible with Category 1 and Category 2 tractors and also fits QUICK HITCH standards, making installation simple and secure.

4. What cutting wheel and carbide teeth does this stump grinder use?

This stump grinder features a durable cutting wheel equipped with carbide teeth designed for long service life.
The carbide teeth remain sharp under heavy working conditions and can be replaced individually when worn, helping maintain consistent grinding performance.

5. How are cutting height and movement controlled during operation?

The HSG24 uses dual hydraulic cylinders to control the grinding wheel’s vertical and horizontal movement.
Operators can adjust the cutting height and cutting depth directly from the tractor cab, allowing precise control when working above or below ground.

6. What PTO speed is required to operate this heavy duty stump grinder?

The HSG24 stump grinder is designed to operate with standard tractor PTO systems.
When connected correctly and operated within recommended settings, the PTO system provides stable power for safe and efficient stump grinding.

Tractors Hp	25-60HP
Gearbox Hp	60HP
Hitch	CAT.1/II (Quick Attach Compatible)
Pto Speed	540 RPM
Pto Shaft	1-3/8” 6 Spline Tractor and Implement Ends PTO Driveline Shaft with Slip Clutch
Cutting Arc(Degrees)	65°
Maximum Cutting Depth (Per Pass)	6in
Number Of Teeth	56PCS
Material Of Teeth	YG10C
Flywheel Speed	810 RPM
Flywheel Thickness	0.79in
Flywheel Diameter	24in
Weight(N.W)	778 lbs (Included PTO Shaft)
Dimensions(LxWxH)	43.3x85.3x43 in
Protection Cover	Rubber
Hydraulic Control Valve	NA
