Heavy Duty 63" Flail Mower rear attached, 3-Point Hitch 35-85 HP, HFS63

Sale price$3,999.00

Overview Features Specs Shipping Details Warranty Video Reviews

Home
Heavy Duty 63" Flail Mower rear attached, 3-Point Hitch 35-85 HP, HFS63

+ Show More

SKU: 101301 | Model: HFS63

Heavy Duty 63" Flail Mower rear attached, 3-Point Hitch 35-85 HP, HFS63

Name: Heavy Duty 63" Flail Mower rear attached, 3-Point Hitch 35-85 HP, HFS63
Brand: farmry
SKU: 101301
Price: 3999.0 USD
Availability: InStock

Sale price$3,999.00

FREE SHIPPING

EST. 11-14 Business Days Delivery

Learn More

Optional Working Width: 63 in

63 in 71 in 79 in 87 in

Availability: In Stock

🎁 Free Gift

🎁 Blade Set for HFS Mower (1 Piece) (100% off)

$0.00 Free

Payment:

Leaves Warehouse Within 1 Week

Ships Randomly From our California or North Carolina Warehouse. Learn More

12-Month warranty included

Product Overview

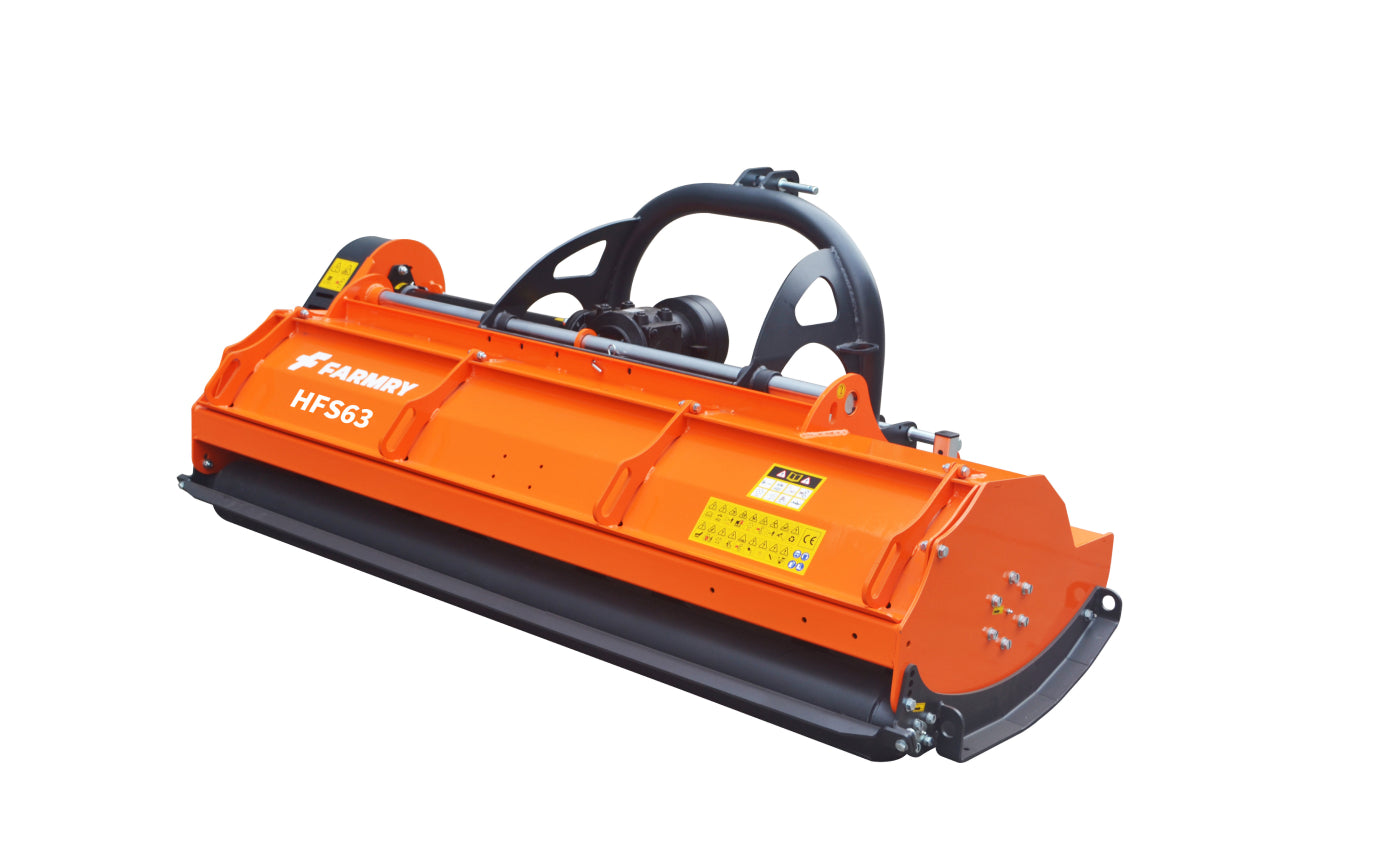

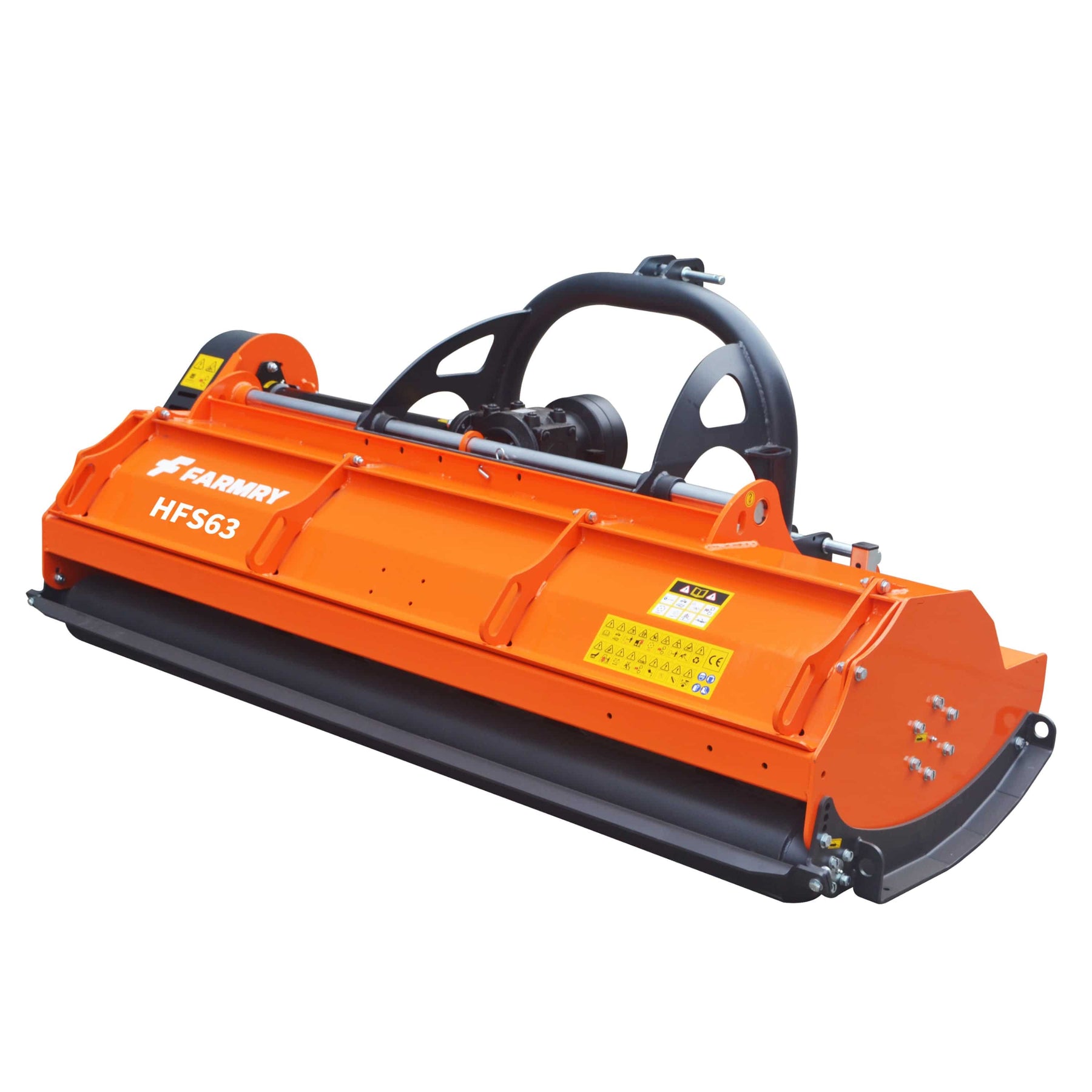

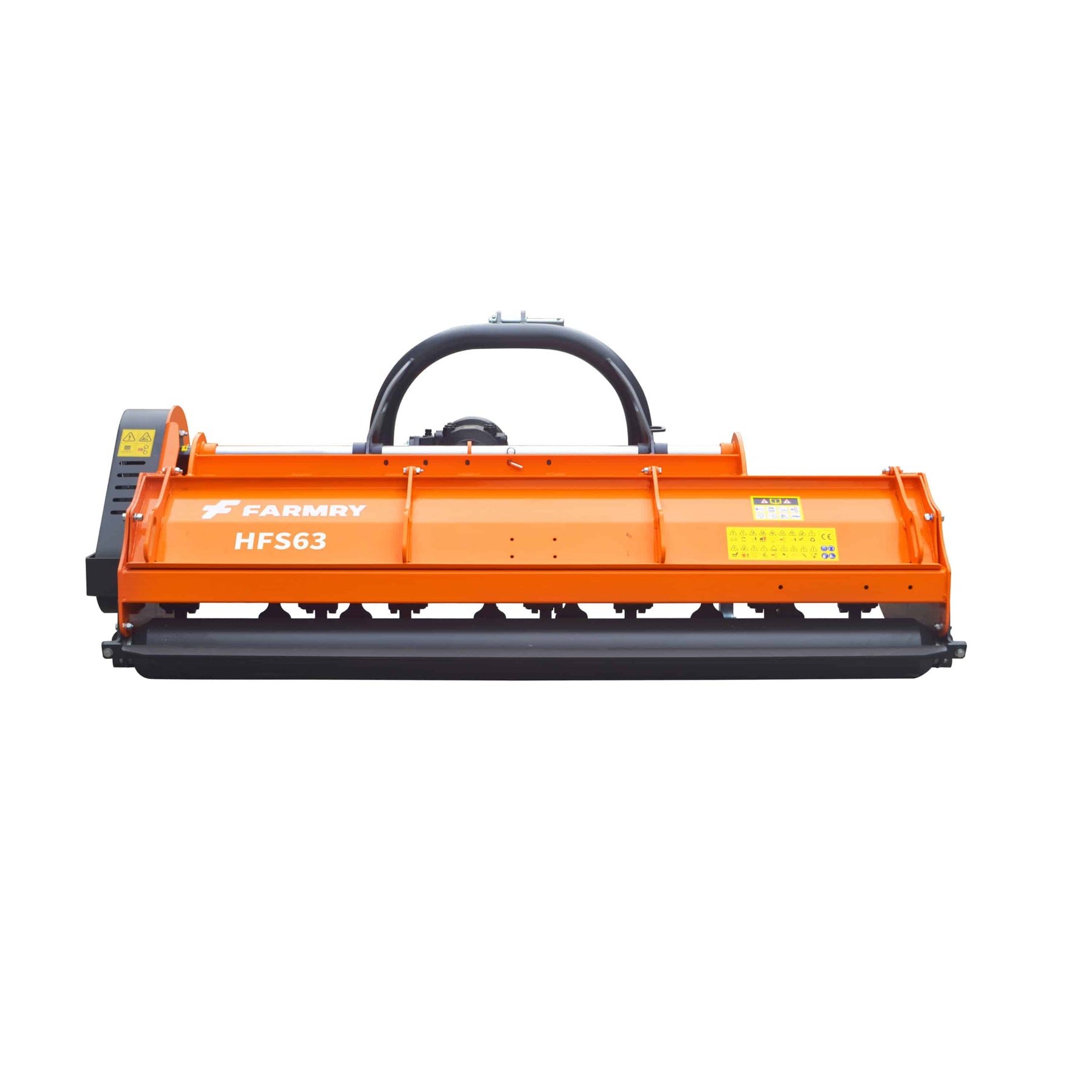

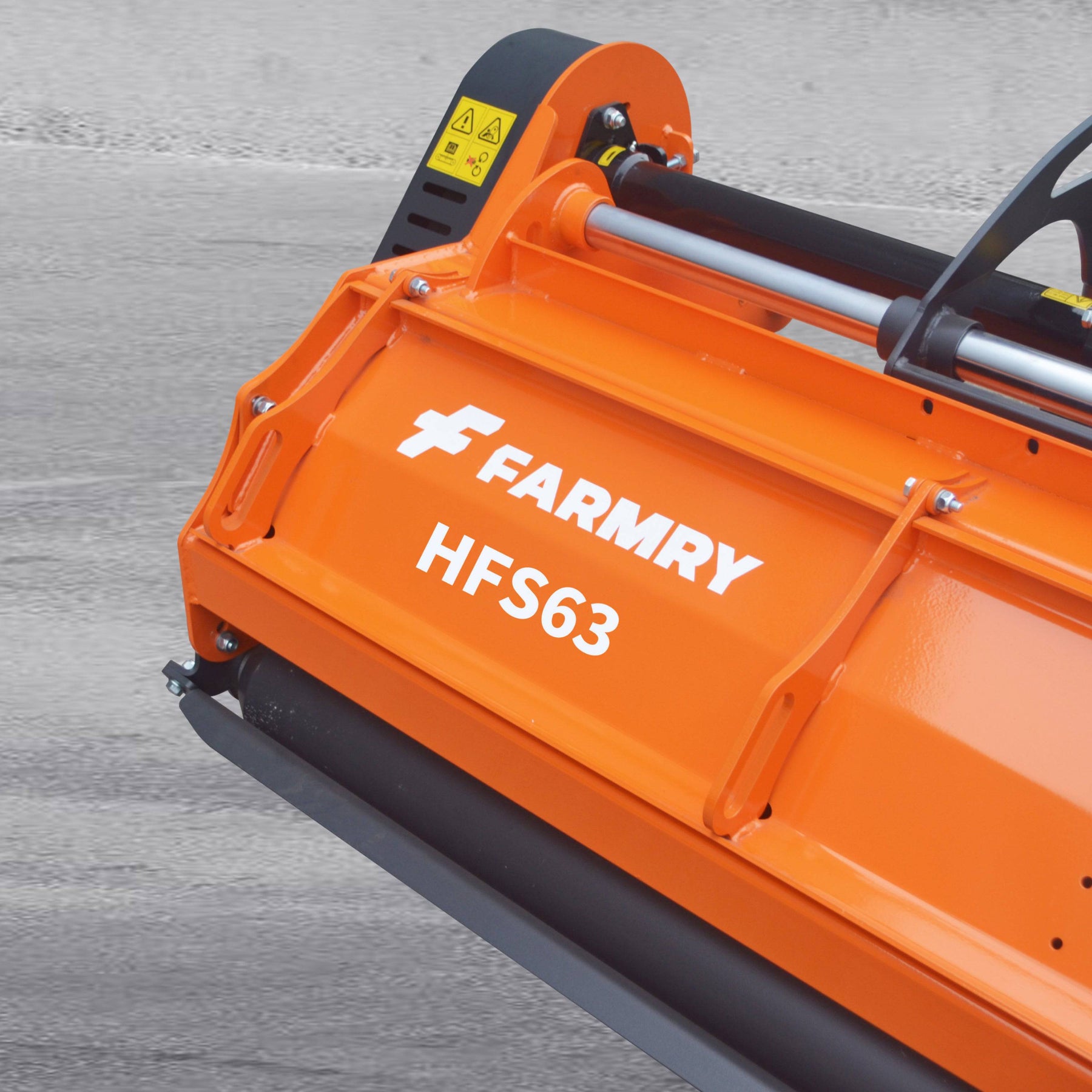

The Farmry 63 in Heavy Duty Standard Flail Mower is perfect for 35-85 HP tractors, offering powerful mulching capabilities for grass, bushes, and pruning up to 2 in thick. Its adjustable cutting height and 63 in width make it ideal for efficient mowing of large areas, while the cast-iron gearbox ensures smooth, reliable performance. With optional hydraulic side shift and a centralized greasing system, maintenance and flexibility are easily managed.

Product Manual

HFS Series Product Manual v1.0

Product Features

Heavy Duty Rear Flail Mower for 35-85 HP Tractors
Ideal for vineyards, orchards, ground cover management, rough terrain, and cutting brush up to 3 inches (8 cm) in diameter.
Heavy-duty, dynamically balanced spiral rotor ensures smooth operation with reduced load stress.
Rear access panel for easy rotor and blade maintenance.
High-strength bolts secure the blades for enhanced durability.
Heavy-duty cast iron gearbox with integrated freewheel for reliable performance.
Low-profile gearbox and transmission design reduce overall machine height for easier transport.
Fixed counter blades for superior mulching performance.
PTO-driven for efficient power transfer.
Blade Options:
Hammer Blades – Ideal for cutting weeds and brush.
Y-Blades – Provides a finer cut for grass mowing.

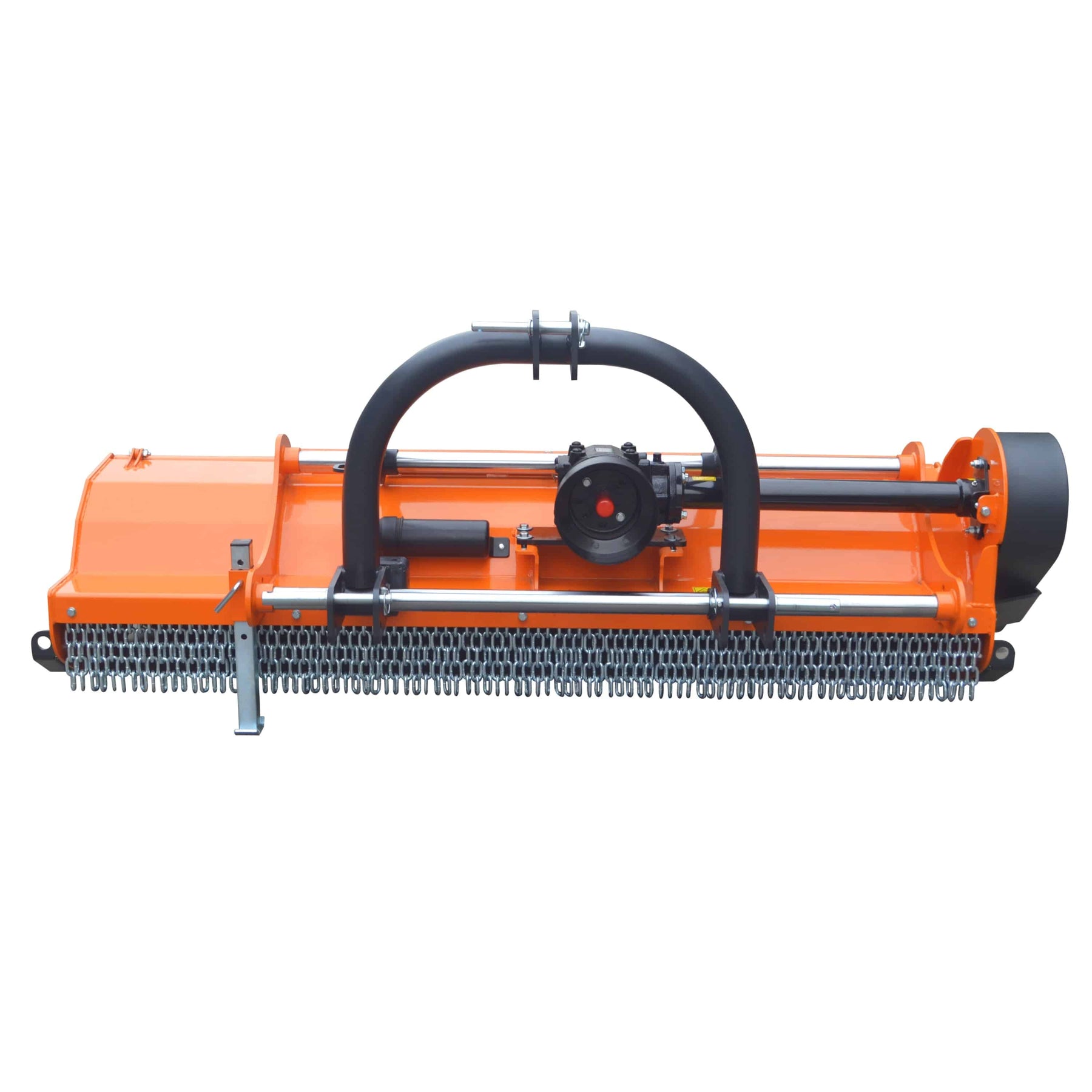

Equipped with protective chains for added safety.

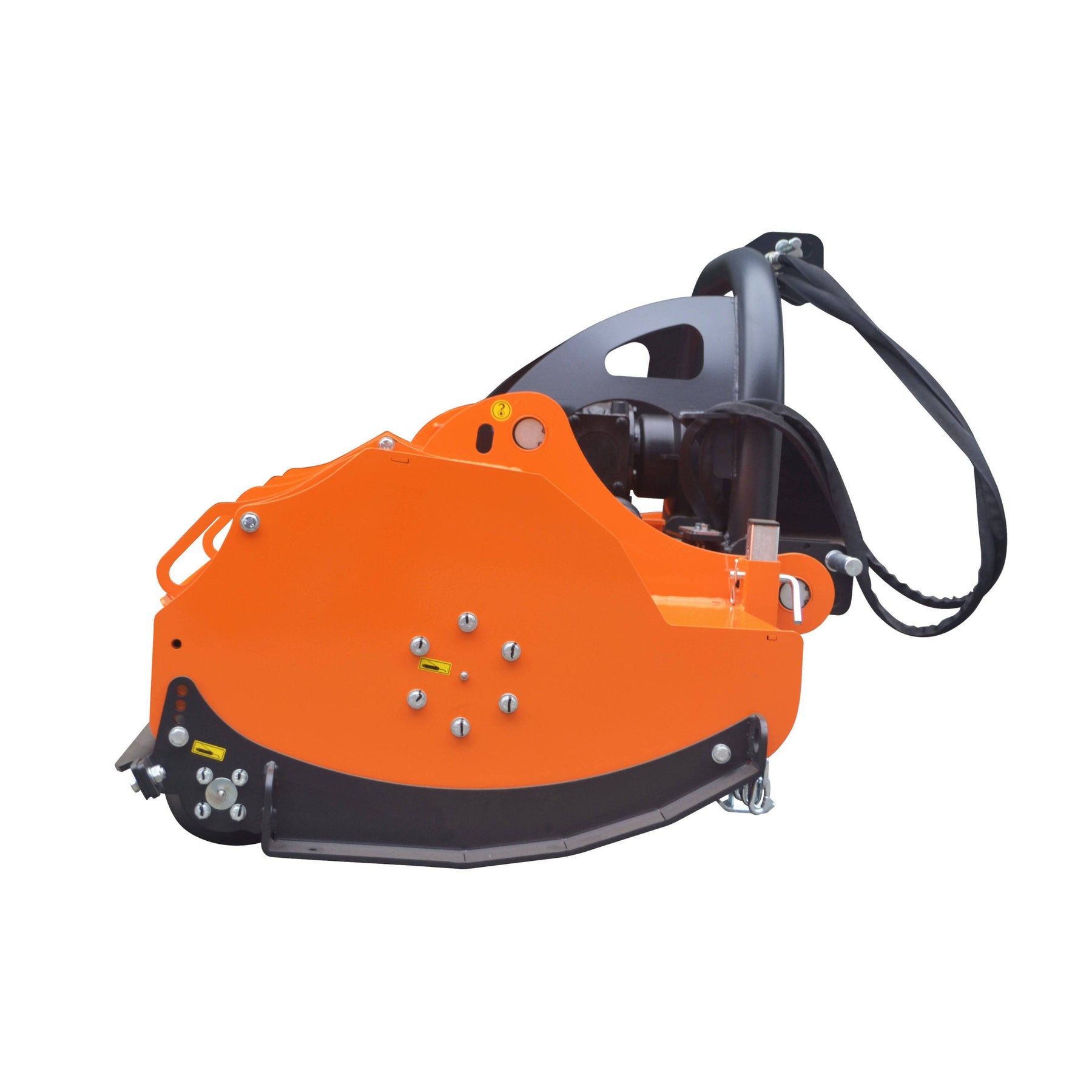

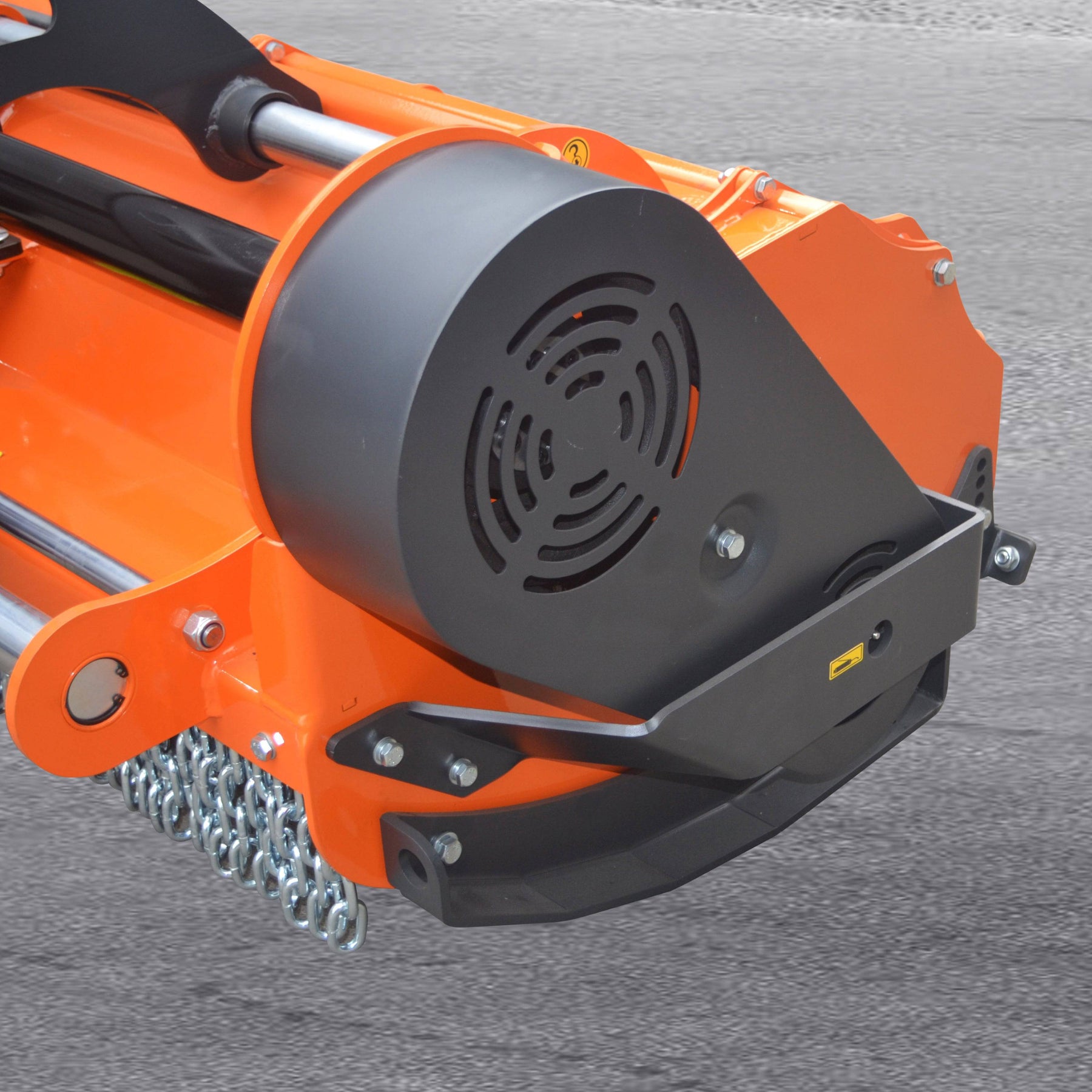

Multiple adjustable skid positions allow for precise cutting height control.
Heavy-duty reinforced hammer blades effectively mulch weeds and brush.
Adjustable rear roller with self-cleaning scraper for improved cutting performance.
Compatible with Category 1 & 2 three-point hitch and ASABE Standard Quick Attach Systems.
Optional Features:
Mechanical or hydraulic side-shift system.
Manual or hydraulic rear cover opening.
Chain guard or baffle protection.
High-quality cast iron gearbox with a freewheel mechanism effectively protects the gearbox during machine shutdown.
Compatible with Category I/II three-point hitch systems and complies with ASABE standard QUICK ATTACH specifications.

specifications

Overall length	42 in	RAM	NO
Overall width	72 in	gearbox HP	50
Overall height	37 in	Number of Y blades	44
Working width	63 in	Number of Hammers	22
	41 / 22	Transmission: PTO	540
	24 / 39	3-Point Linkage	I II

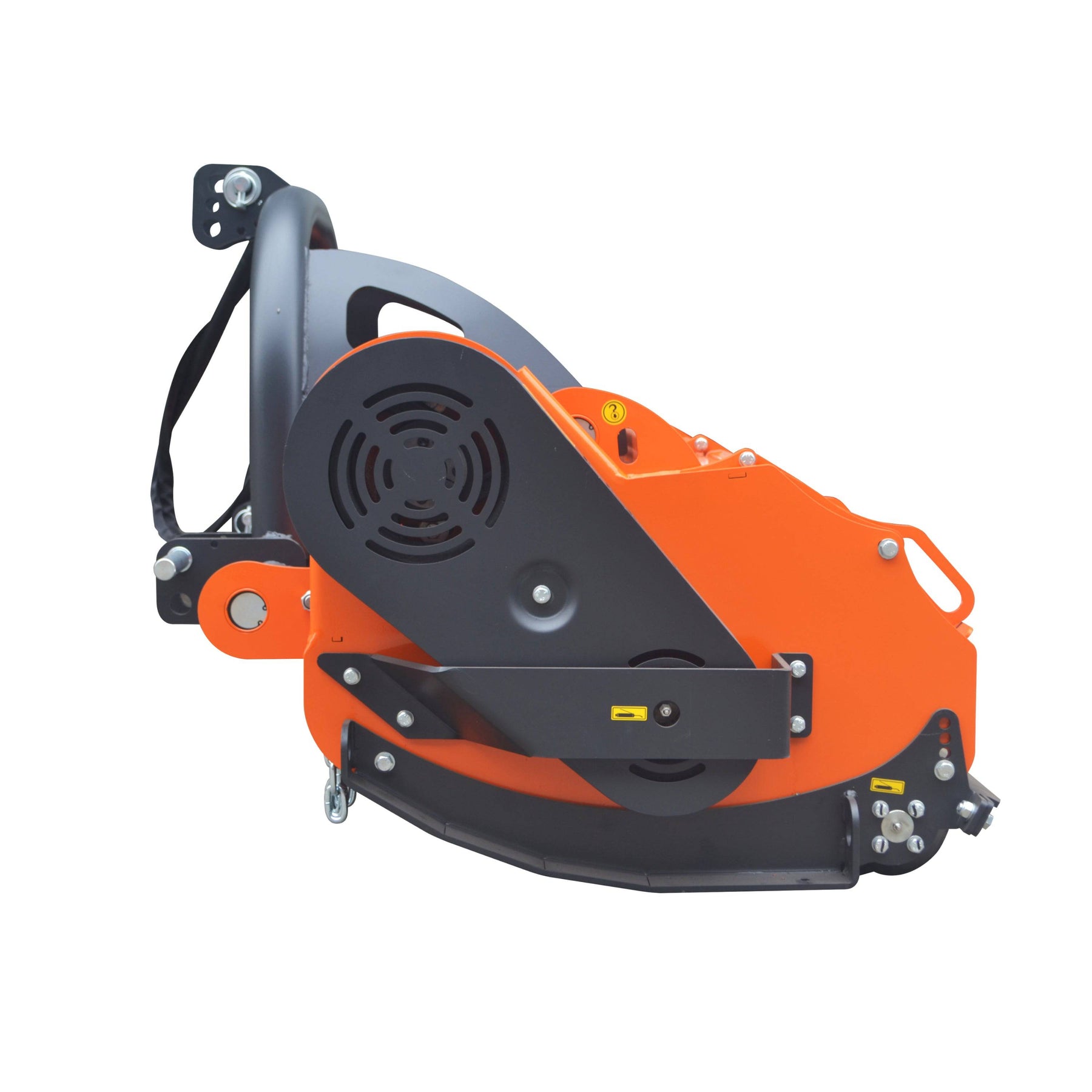

Transmission: RPM Rotor speed	2,146	Belts quantity	4
A (Rotor: diameter)	φ7 x 0.3	Belt Tension Adjustable	Manual
B (Rotation diameter of the cutting edge)	16 in	Weight （INCLUDED PTO SHAFT）	1,179 lbs
C (Distance from the center of the rotor to the top of the inner side of the hood)	9 in	Tractor Power Range	35-85 HP
D(Rear roller: diameter)	φ6 x 0.2 in	Gearbox Oil Type	SAE90 EP Gear Oil
		Packing sizes	745x 458x 41 in
V ft/s	151	Packaging weight	1,321 lbs
Openable maintenance door	YES

Shipping Information

The order will ship from one of our warehouses in the United States. Under normal circumstances, the processing time is 2 to 3 business days, and delivery can take up to 11 to 14 business days, depending on location and accessibility.

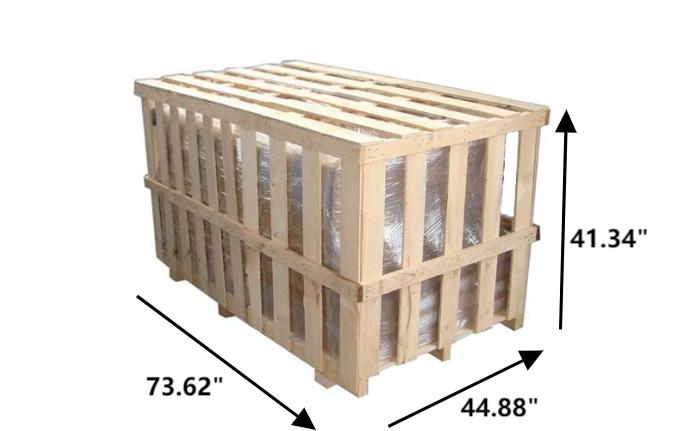

The product is packed in a wooden crate shipping box for secure transit. Shipping dimensions are 74 x 45 x 41 in (L x W x H), and the shipping weight is 1248 lb, ensuring safe and protected delivery of the product.

Details

The HFS 63 in Rear-Mounted Shredder is designed for efficient mulching in vineyards, orchards, and other agricultural settings. Suitable for tractors between 35-85 HP, this powerful shredder can handle grass, bushes, and prunings up to 3in in diameter. With a working width of 63 in, the HFS shredder provides high-output performance, ideal for maintaining large areas. The adjustable cutting height (0.6 to 2in) ensures flexibility for different terrains and vegetation needs.

This heavy duty flail mower comes equipped with a robust cast-iron gearbox for durability, a self-cleaning leveling roller with a scraper, and side skids for precise and controlled cutting. The addition of a CAT I or II 3-point universal hitch allows for easy attachment to most tractors, while the toothed counter knife enhances cutting efficiency. Optional features include a hydraulic side shift for added maneuverability, a hydraulic lifting back cover for easy access, and Y blades for enhanced cutting performance.

The HFS 63 in rear Mounted Flail Mower is designed with maintenance and usability in mind, featuring an openable maintenance door and adjustable belt tension to ensure smooth operation over time. With safety and efficiency built into every feature, the HFS 63 in rear attached flail mower is a reliable choice for vineyard and orchard maintenance, offering top-notch mulching results in various conditions.

Warranty Information

At Farmry, we stand behind our products. Enjoy peace of mind with our 1-year manufacturer warranty. Our dedicated customer support team and spare parts are conveniently available from our two warhouse in Los Angles, CA and Charlotte, NC, ensuring you get the help you need.
