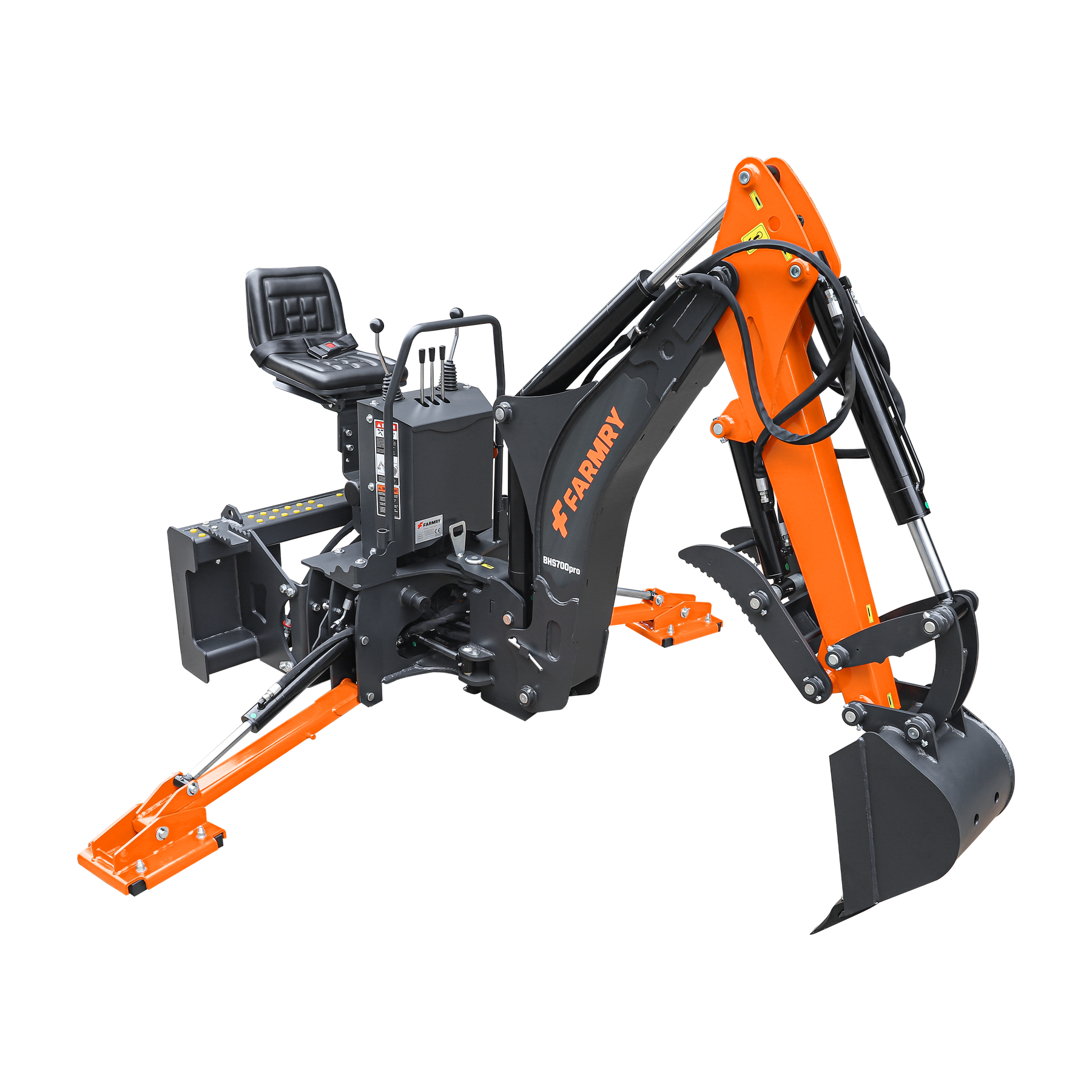

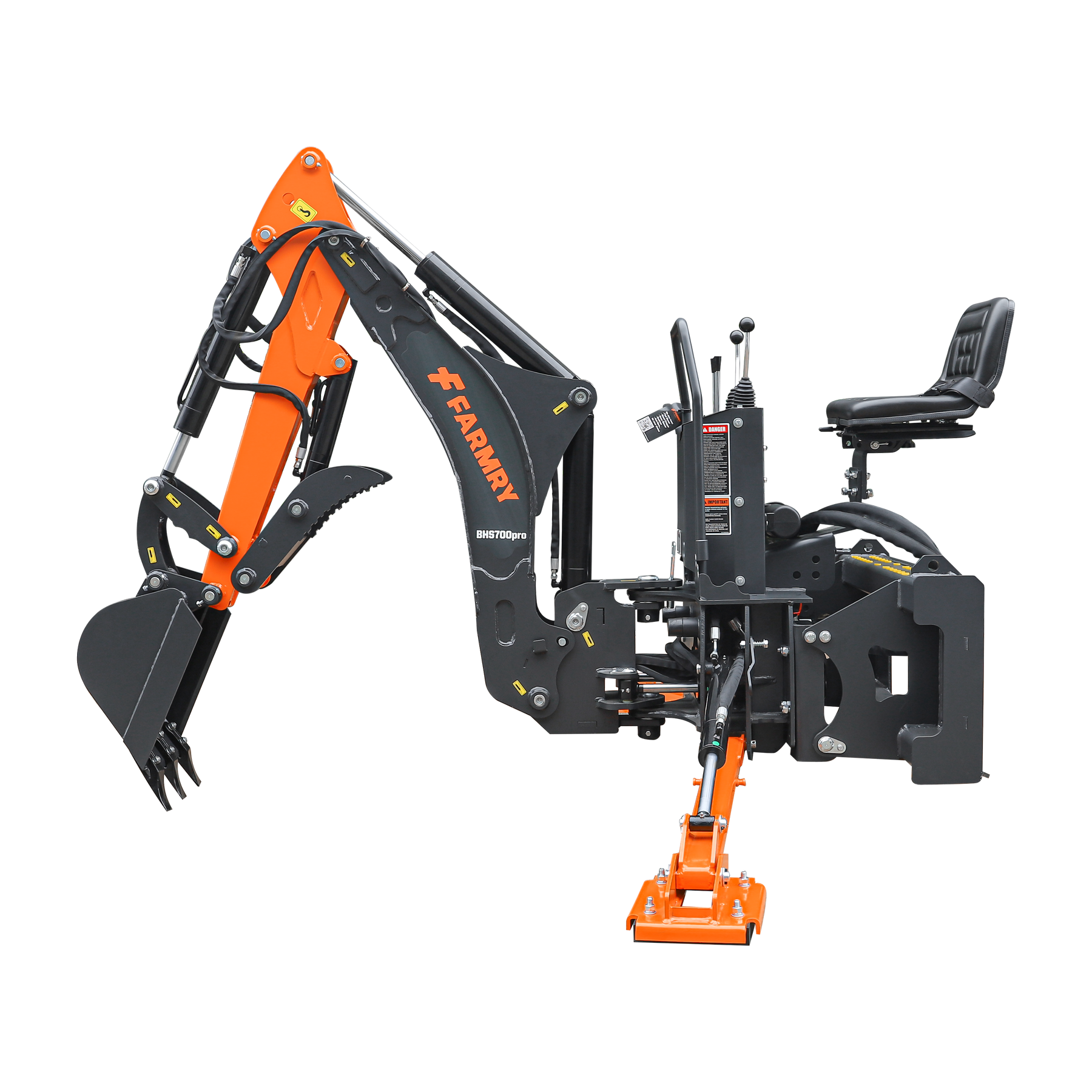

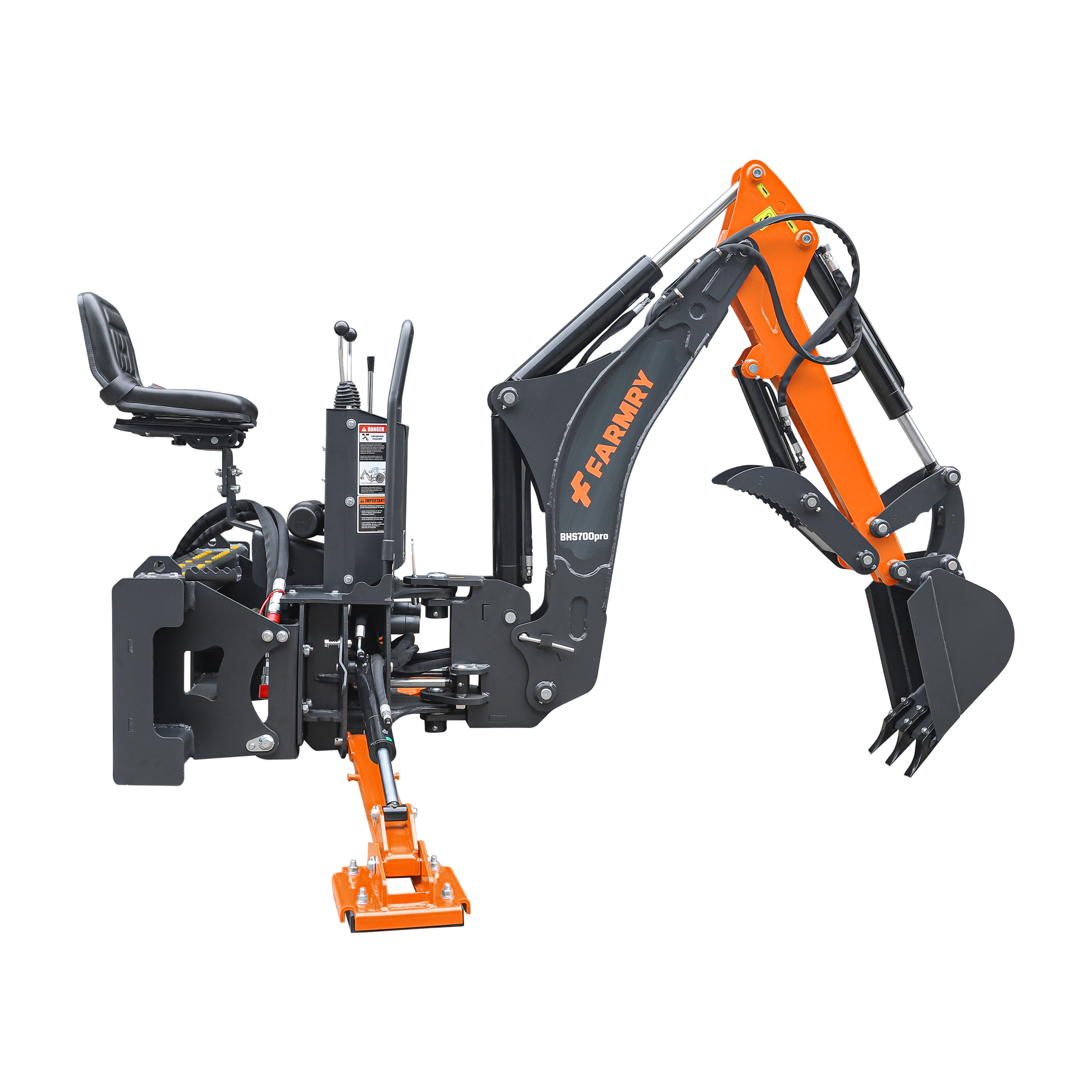

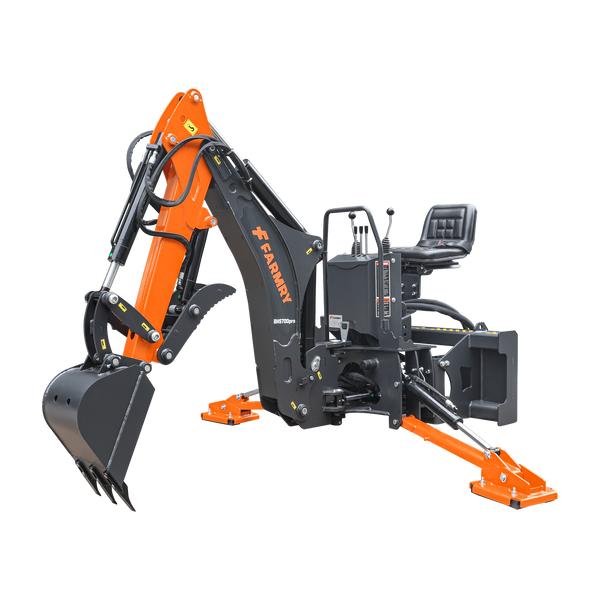

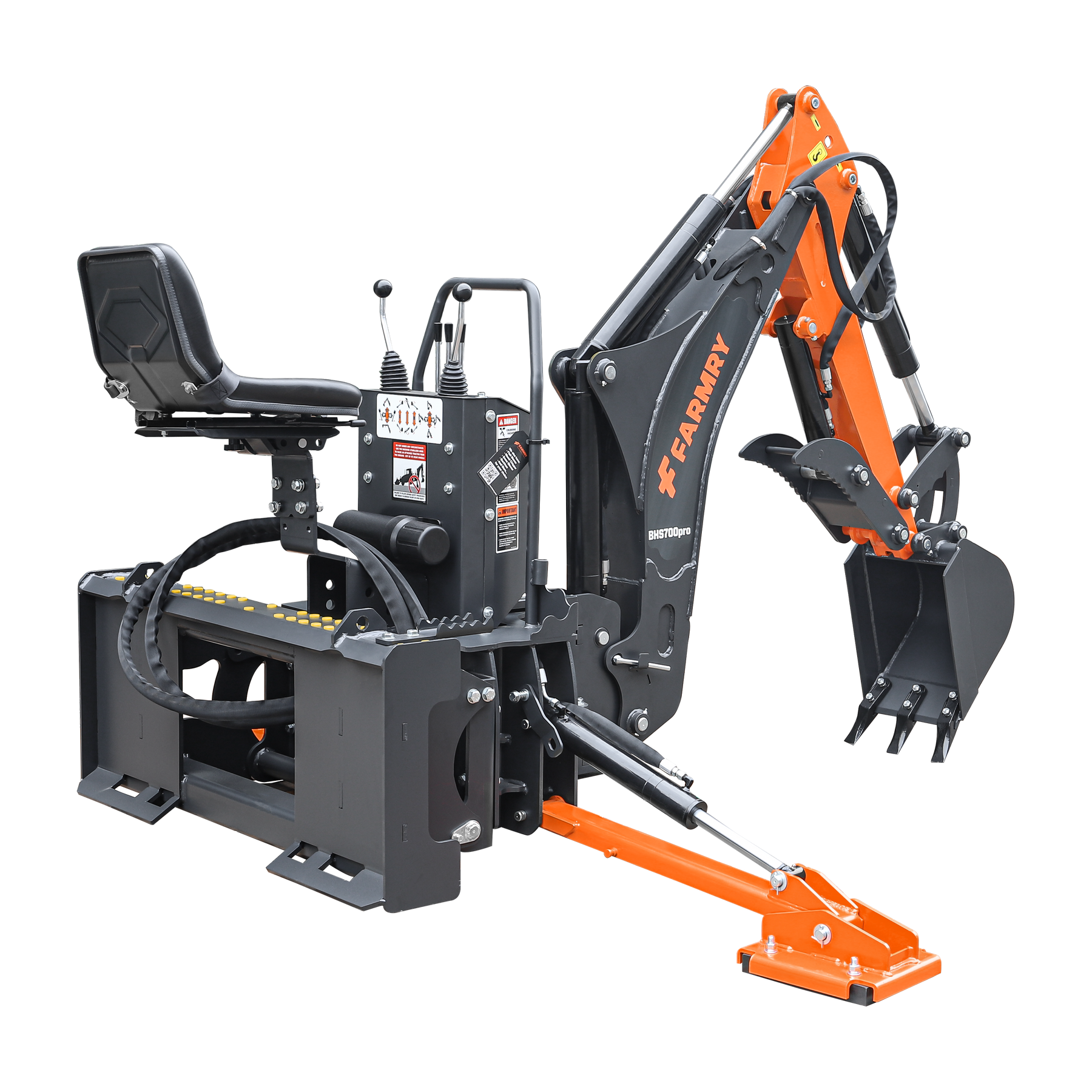

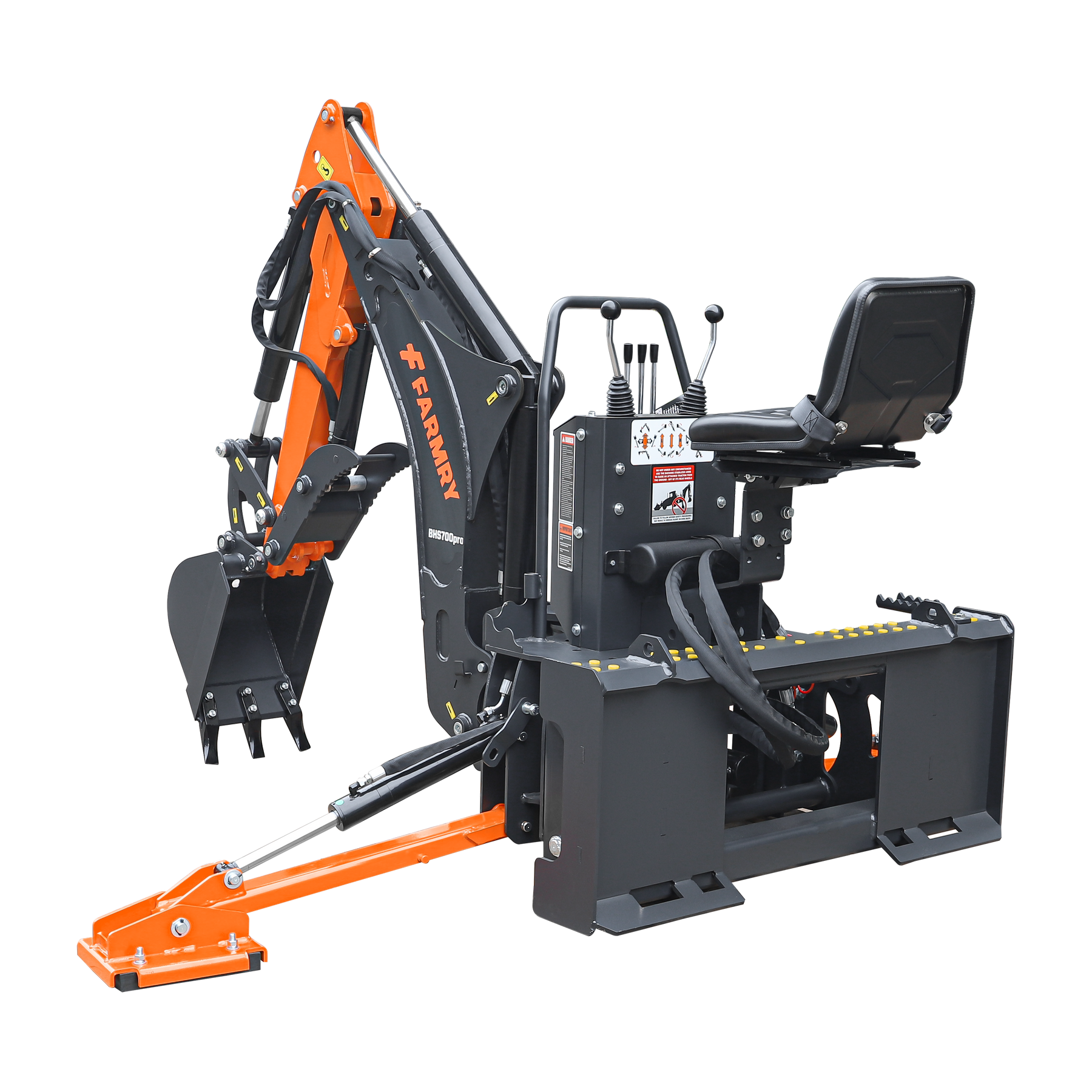

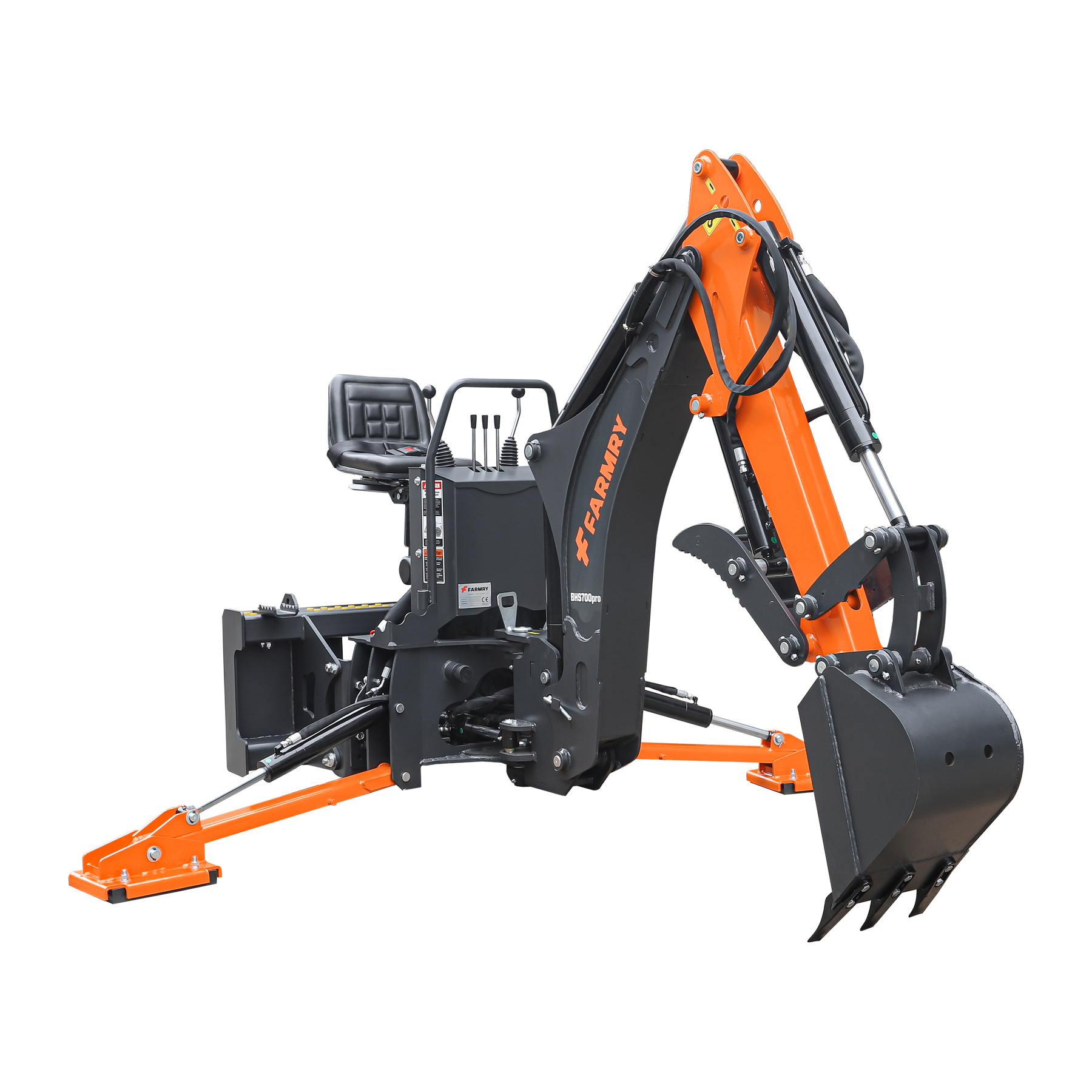

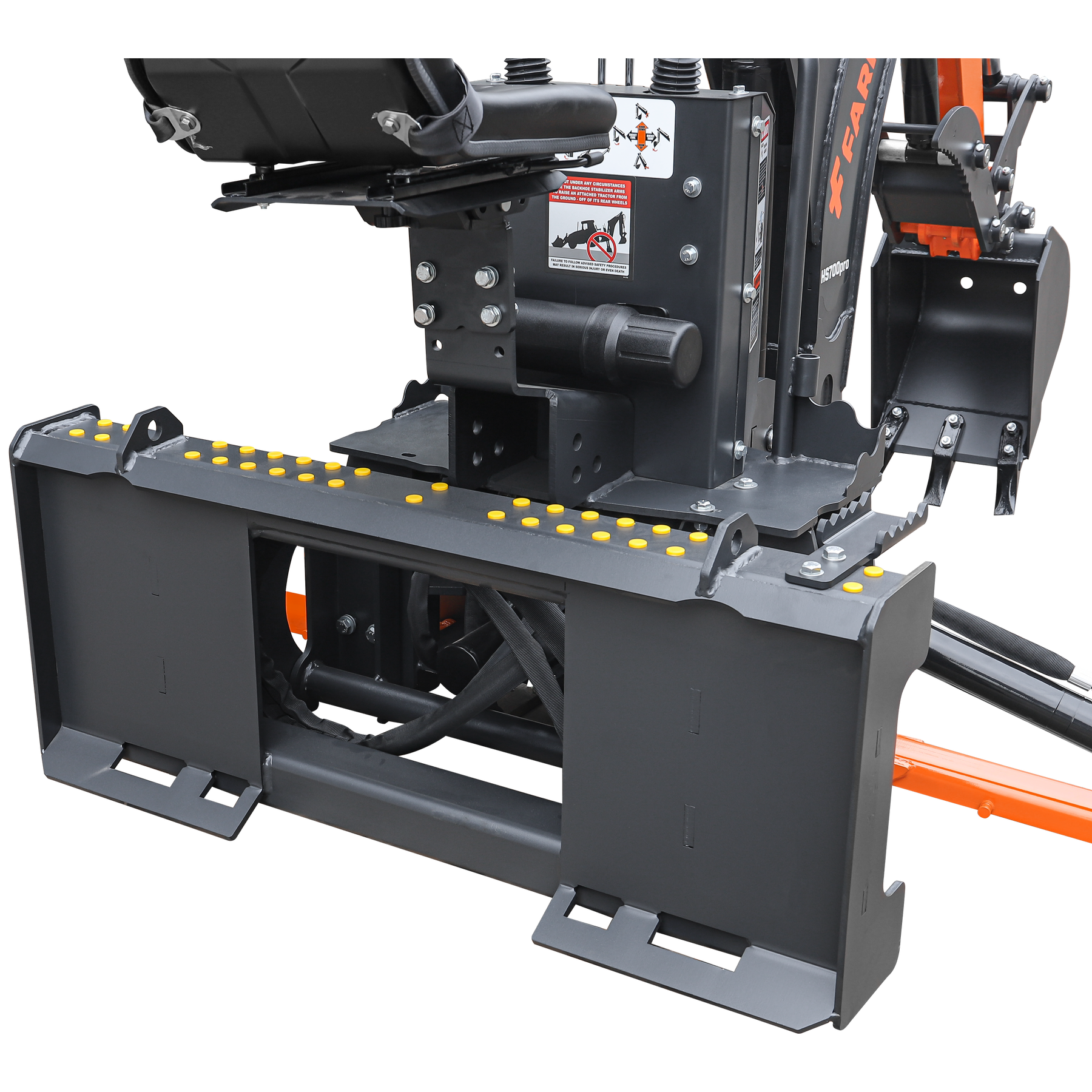

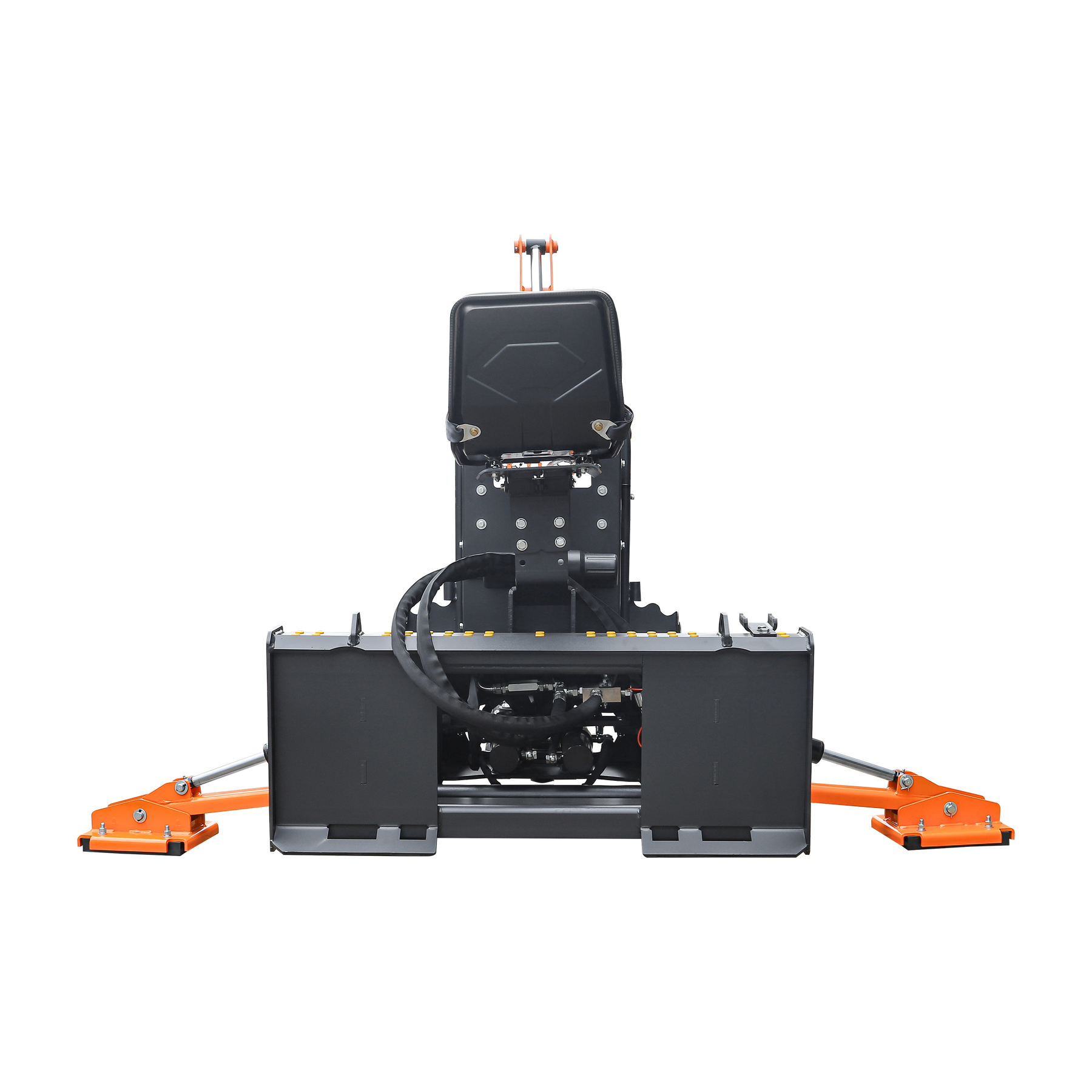

7' Skid Steer Loader Backhoe with Curved Boom, Italian Original WALVOIL Seven Way Hydraulic Control Valve, 12" Bucket, Hydraulic Grapple Thumb included, for 30-50 HP, BHS700Pro

• First, confirm your tractor’s horsepower range, then select a backhoe model that aligns with this specification to ensure optimal compatibility and performance.
• If your budget permits, we recommend the PRO-series backhoe—it delivers enhanced operability and advanced functionality that elevate overall work efficiency.
• For those with budget constraints, Farmry also offers essential models that still fully fulfill your basic operational requirements, balancing affordability and practicality.

• For standard models, domestic hydraulic valves are used
• For PRO-series models, imported Walvoil (Italy) hydraulic valves are adopted.

The Walvoil valves on PRO models deliver significantly better overall handling performance.

• A higher model number indicates a greater digging depth and working range.
• The BH600 series does not include a log grapple, while the BH700/820/920 series are equipped with hydraulic grapple.
• The BH600/700 series feature a smaller pump displacement, whereas the BH820/920 series have a larger pump displacement.
• The BH600 series is compatible with 3-point CAT I hitches; the BH700/820 series (excluding skid steer versions) are compatible with 3-point CAT I/II hitches; the BH920 series (excluding skid steer versions) is compatible with 3-point CAT II hitches.
• For detailed information, please refer to the technical specification sheet.

During the product design phase, Farmry prioritized the convenience of daily maintenance. Follow these steps when performing routine maintenance checks:

• Grease the pivot points.
• Inspect all fastening bolts for looseness.
• Check for hydraulic fluid leaks in the hydraulic lines.
• Verify the hydraulic oil level in the reservoir.
• Inspect the hitch linkages for looseness or deformation.
• Ensure the PTO pump connection is secure, and check for chain or latch failure.
• Confirm no safety decals are missing.

Your user manual contains detailed instructions for each step. Adhering to the manual’s guidelines will ensure your equipment operates reliably and has an extended service life.

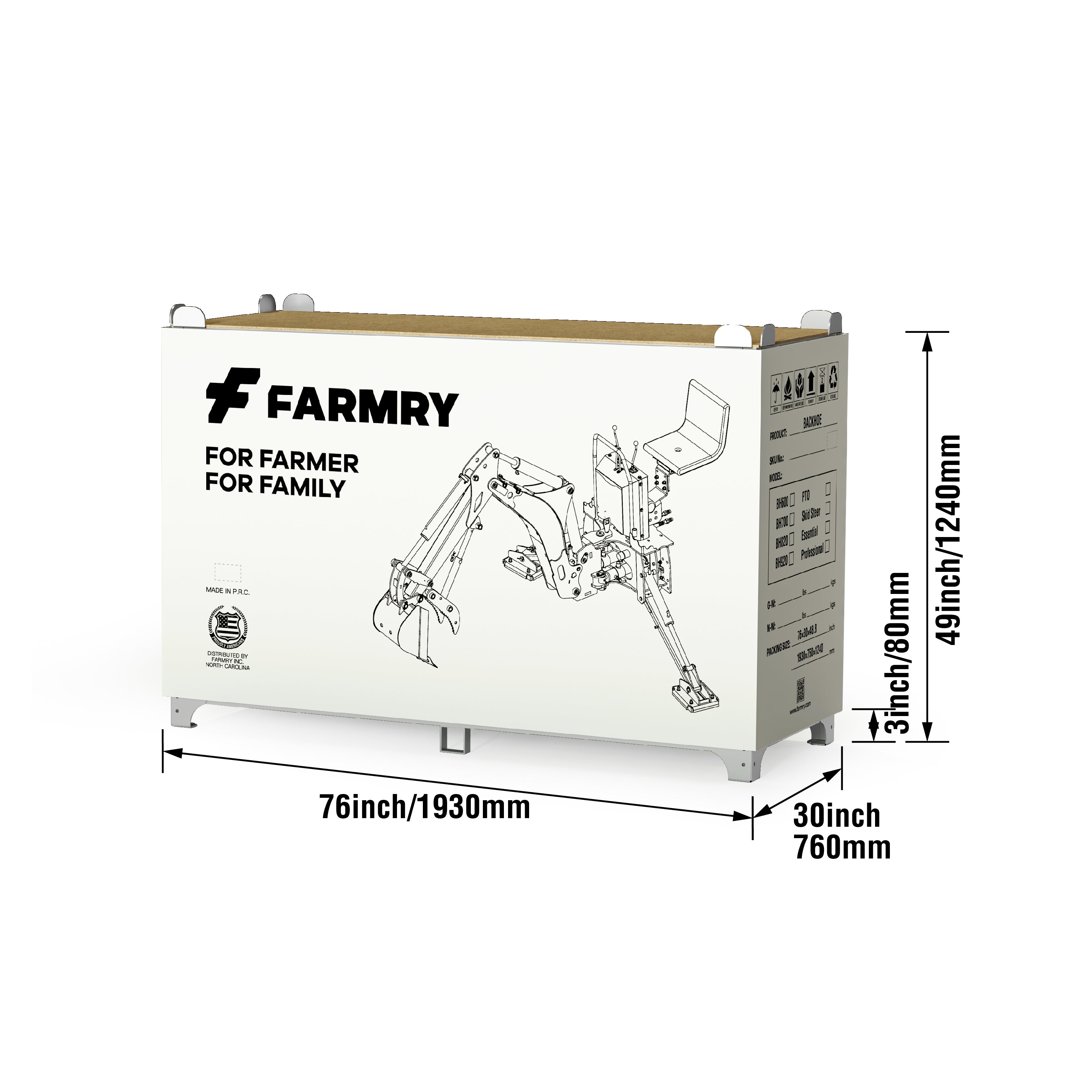

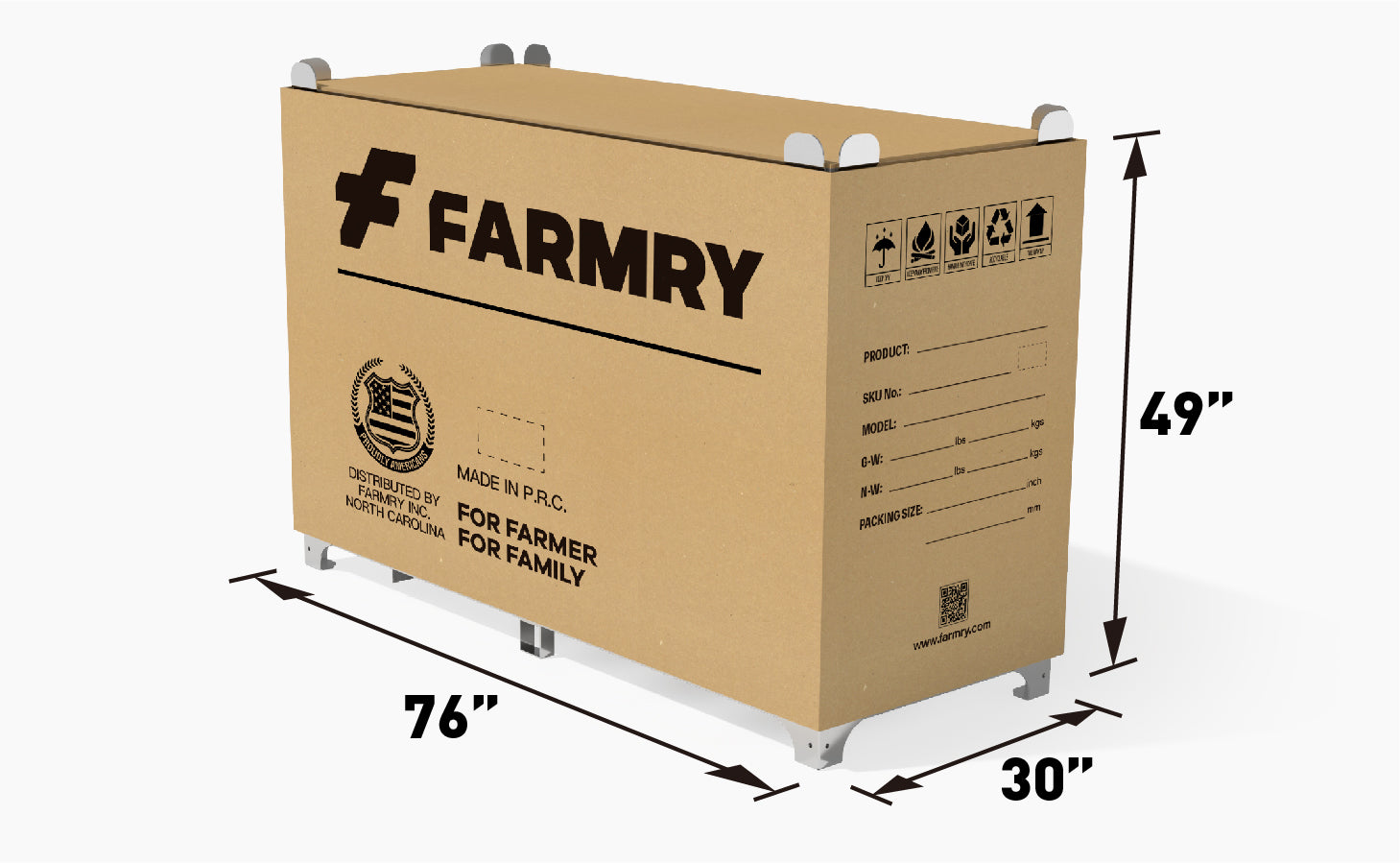

The product you receive will not be fully assembled. We provide detailed images and videos for guidance, and you may also refer to the product manual during installation. For any questions, please contact our after-sales support team for assistance.

The tractor must have a 1-3/8", 6-spline PTO shaft to fit the pump drive coupler, and the tractor cannot operate at any speed other than 540 rpm.
It is not recommended that tractors with a variable speed PTO be used with the backhoe. Operating at speeds higher than 540 rpm can over speed the pump and cause early failures.

For the backhoe products (BH600, BH600 PRO, BH700, BH700 PRO, BH820, BH820 PRO, BH920, and BH920 PRO) compatible with tractor models，
When installing the PTO oil pump onto the tractor, interference may occur — this will prevent the pump from fully connecting to the tractor’s PTO shaft (see the left image below).
When you plan to purchase any of the above products, please be sure to confirm that there is sufficient space in the PTO shaft area of your tractor (refer to the dimension 7-3/4" shown in the right image below).

If there is insufficient space in this area, you will need to install a PTO shaft extender.
Another secenario is, if there is any components are located on the shadow area(160*224mm/6.3*8.8in) of PTO pump which install into the tractor PTO area, it also requires a PTO extender
This can be purchased on the Farmry website or at most agricultural machinery stores.
